Scissor Lift Platform
video

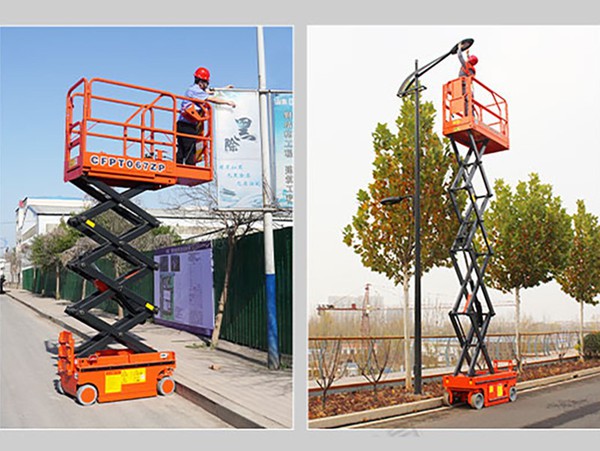

Scissor Lift Platform

Scissor Lift Platform

lifting height:11.8m working height:13.8m platform load:320kg platform size:2270x1100mm Overall weight:2990kg
Send Inquiry
Description
Products Description

In today's fast-paced world, construction projects are becoming increasingly massive and demanding. Heavy machinery and equipment are a common sight at many construction sites, and safety's always a top concern. One such common piece of equipment is the scissor lift platform.



A scissor lift platform is a versatile mobile platform that can be used for a wide range of applications, including construction, maintenance, and industrial activities. It gets its name from its scissor-like appearance, with an extended platform resting on a set of crisscrossing braces. The platform can be lifted to different heights, depending on the required task and its associated loads.



One of the key advantages of scissor lifts is their mobility. They're equipped with sturdy and durable wheels that enable them to be moved around the work site with ease. This mobility not only increases efficiency but also saves time and money as workers can easily move and position the platform when necessary. Furthermore, they're equipped with advanced safety features to guarantee the well-being of workers.



one of the most significant advantages of using a scissor lift platform is its increased working height. This elevated position allows workers to accomplish each task with ease, reducing the strain associated with working on ladders or scaffolds. This increased flexibility and reach can ultimately save time and reduce the risk of accidents, which is a top priority for any worker and employer.



Overall, the scissor lift platform is an invaluable tool for any construction or maintenance project. It's versatile, durable, and highly customizable, making it perfect for handling heavy loads and reaching significant heights while keeping workers safe. Whether you're involved in construction, maintenance, or industrial activities, a scissor lift platform is an essential piece of equipment that shouldn't be overlooked.

Q3
Q4



feature:
  • Proportional controlSelfSelf-lock

  • Gate on platform

  • Extension Platform

  • Full height walking

  • Non-marking tire

  • 4X2 drive

  • Automatic brake system

  • Emergency descent system

  • Emergency stop button

  • Oil pipe explosion-proof system

  • Fault diagnosis system

  • Tilt protection system

6802a4424



Q5

Automatic pothole protection system
Emergency descent system
Solid rubber tires
Hydraulic pump station power system



Applications
Aerial Work Platforms is widely used for the equipment installations and maintenance such as construction sites workshops, warehouse, granary, theatre or museum, bus/railway stations, hotels, airports, gas station and aerial pipeline. Non-trace universal polyurethane wheels used will be no damage to ground. DC Battery power make the low noise when using and convenient to moving and one person operation



Q6
Q7


Product parameter

Model PT1214
Load capacities 320kg
Load capacities of extended platform 113kg
Maximum number of workers 2
Working height 13.8m
Maximum platform height 11.8m
Length of the whole machine 2485mm
Overall length 2280mm
Overall height(guardrail unfolded) 2613mm
Overall height(guardrail folded) 2060mm
Platform size 2270mmx1110mm
Platform extension size 900mm
Minimum ground clearance (stowed) 100mm
Minimum ground clearance (raised) 19mm
Wheelbase 1865mm
Lifting motor 24v/4.5Kw
Machine running speed (stowed) 3Km/h
Machine running speed (raised) 0.8Km/h
Rising/descending speed 58/50sec
Overall weight 2990Kg

02

03

product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500

05

06

KE8JGCWQPI70NA8Q

We focus on the research and development of new energy and technology to further enhance the low emission level of our Double Mast Self-propelled Lifting Platform9.5-11m. Our company has adhered to the business philosophy of "talent as capital, technology as motivation, and customer needs as our responsibility. The company continues to open up the market, with the customer first business and service concept and work with you to advance and create brilliance together. Our company adheres to the principle of 'quality, honesty, excellence' and dedicates first-class products to customers.



As a professional brand in the Double Mast Self-propelled Lifting Platform9.5-11m field, we have now become a customized Double Mast Self-propelled Lifting Platform9.5-11m company integrating a variety of products. The sales channels are divided into franchise, direct sales and domestic and foreign bulk businesses. Today's pay, tomorrow's return. We always think that if we put in the effort, it will pay off. Therefore, our company always requires employees to be diligent and not eager for quick success. Finishing has always been our constant purpose. Good products are in control of the details, we check every level, and strive to perfect the details of the product.





s

Model CFPT1214
Load capacities 320kg
Load capacities of extended platform 113kg
Maximum number of workers 2
Working height 13.8m
Maximum platform height 11.8m
Length of the whole machine 2485mm
Overall length 2280mm
Overall height(guardrail unfolded) 2613mm
Overall height(guardrail folded) 2060mm
Platform size 2270mmx1110mm
Platform extension size 900mm
Minimum ground clearance (stowed) 100mm
Minimum ground clearance (raised) 19mm
Wheelbase 1865mm
Min.turning radius(inner wheel) 0mm
Min.turning radius (outer wheel) 2.2m
Lifting motor 24v/4.5Kw
Machine running speed (stowed) 3Km/h
Machine running speed (raised) 0.8Km/h
Rising/descending speed 58/50sec
Overall weight 2990Kg
