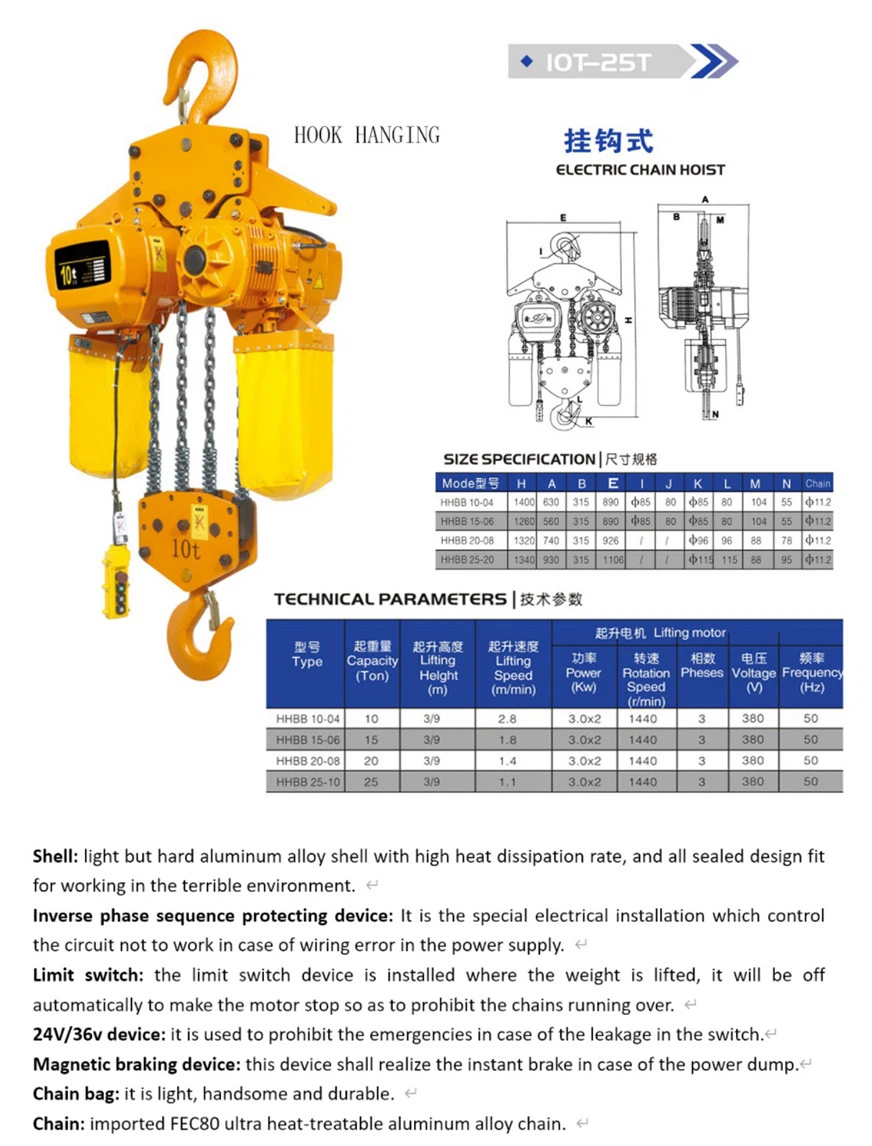

Products Description
PXell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
Limit switch: the limit switch device is installed where the weight is lifted on and off to make the motor to stop outomatically so as to prohibit the chains from exceeding for safety.
24V/36v device: it is used to prohibit the emergencies from occurring in case of the leakage in the switch.
Side magnetic braking device: this device shall realize the instant brake in case of the power dump.
Chain bag: it shall be light, handsome and durable.
Chain: The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain.
Manganese steel hook: After hot forging, it is not easy to break. The lower hook can be rotated 360 degreesSHELL: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Chain (can be lengthened): The alloy steel chain is treated with imported heating technology, and it is safe to use in rain, sea water, chemical and other harsh conditions.
Copper motor: sufficient power, fast heat dissipation with special heat sink, and continuous work without getting hot.High quality motor, Low noise
Limit switch: the limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
Side magnetic braking device: this device shall realize the instant brake in case of the power dump.
Transformer: 24V/36V transformer device, in case of leakage during operation, it can prevent accidents.
Support frame: The lifting support frame is composed of two steel sheets, which is very tight
Button switch (the line can be lengthened): Use a waterproof button switch.
24V low voltage Control handle with emergency stop button
Wireless controller is also available with extra charge
Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
Chain bag: it shall be light, handsome and durable.
| Model | H | A | B | D | E | W | U | R | T |
| HHBB10-04 | 1190 | 630 | 315 | 890 | 445 | 926 | 560 | 142 | 231 |
| HHBB15-06 | 1310 | 630 | 315 | 1070 | 535 | 926 | 560 | 142 | 231 |
| HHBB20-08 | 1470 | 630 | 315 | 1260 | 630 | 1106 | 740 | 142 | 231 |
| HHBB25-10 | 1470 | 630 | 315 | 1460 | 725 | 1280 | 930 | 142 | 231 |
TECHNICAL PARAMETERS
OPERATING MOTOR
| Model | Power (KW) | ROTATION SPEED(r/Min) | Operating Speed (m/min) | Phases | Voltage (V) | Frequency(HZ) | I-Beem (mm) |
| HHBB10-04 | 0.75 | 1440 | 11/21 | 3 | 380 | 50 | 150-220 |
| HHBB15-06 | 0.75*2 | 1440 | 11/21 | 3 | 380 | 50 | 150-220 |
| HHBB20-08 | 0.75*2 | 1440 | 11/21 | 3 | 380 | 50 | 150-220 |
| HHBB25-10 | 0.75*2 | 1440 | 11/21 | 3 | 380 | 50 | 150-220 |
Lifting Motor
| Model | Capacity(Ton) | Lifting Height (m) | Lifting Speed (m) | Power (KW) | Rotation Speed (r/min) | Phases | Voltage | Frequency |
| HHBB10-04 | 10 | 3/9 | 2.8 | 3.0*2 | 1440 | 3 | 380 | 50 |
| HHBB15-06 | 15 | 3/9 | 1.8 | 3.0*2 | 1440 | 3 | 380 | 50 |
| HHBB20-08 | 20 | 3/9 | 1.4 | 3.0*2 | 1440 | 3 | 380 | 50 |
| HHBB25-10 | 25 | 3/9 | 1.1 | 3.0*2 | 1440 | 3 | 380 | 50 |
