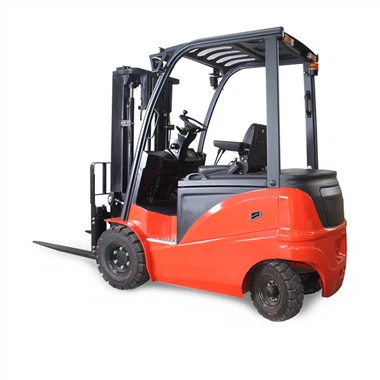

Electric Forklift 2.5 Ton
video
Electric Forklift 2.5 Ton

Electric Forklift 2.5 Ton

The forklift is equipped with standard LED lamps: headlamps, front turn lamps, rear combination lamps, warning lamps. Bright light with low power consumption allows you to operate freely at night.
Send Inquiry
Description
Products Description

Electric forklifts are becoming increasingly popular in the industrial world today. Their electric motors have replaced the traditional internal combustion engines, offering a number of benefits. For starters, electric forklifts are much quieter than their gas-powered counterparts, reducing noise pollution in the workplace. Additionally, they have significantly fewer moving parts, resulting in less maintenance and fewer repairs.



Electric forklifts have lower emissions and are more eco-friendly than gas-powered ones. They produce zero emissions on-site, making them ideal for indoor use, such as in warehouses and factories. Plus, they don't need oil changes, reducing service time and costs. They also have longer lifespans than gas-powered forklifts since electric motors have fewer parts that can fail or wear out.



Another advantage of electric forklifts is their exceptional maneuverability, especially in tight areas. They are also easier to operate than gas-powered forklifts because they have fewer controls and require less physical effort from the operator.



If you want an efficient and energy-saving forklift, welcome to see our Electric Forklift 2.5 Ton! It is powered by storage battery, which is very suitable for buildings, warehouses and other places with high requirements for environmental protection. The equipment has the advantages of pollution-free and energy-saving, avoiding the impact of tail gas emission on the environment, and all components are waterproof and dustproof, making it suitable for indoor and outdoor operations. At the same time, it is equipped with advanced connectors and is also used for small projects, which can realize an efficient loading and unloading experience.

FB25T



4cee64207902f2818832c235681dda2

Component reliability

1, casting type steering bridge, tapered roller bearing;

2, integral brake drum drive axle, integral casting axle housing, shaft oil seal design, high precision large contact gear;

3, borrow mature internal combustion series door frame main components;

4. Sheet metal stamping side cover;

5, all metal punching non-slip pedal)

5a6d37280806ef0134308f8e1db6600

The vehicle lateral stability is high, operation safety is guaranteed

97f9315bf955ceb19d75da25e9cf6a1The vehicle lateral stability is high, operation safety is guaranteed
a292c80a1dc38146d641e802565b231

Strict test item verification

1. Rain test;

2, cold storage test;

3. Vibration test of the whole machine;

4. Strengthening test











5

Operation

With the new design of ergonomical all joystick can be reached conveniently &comfortably.

6

Flexible Steering System

The dynamic load sensing priority steering system is adopted to make the steering response faster and the driving more stable.

10

Performance

The innovative AC system offers strong power,accurate control excellent performance

High strength motor longer working lifeLow-noise but durable hydraulic pump good quality cylinder as well as hose ensure the high reliability of hydraulic system

forklift truck



product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500

05

Product Parameter
1 Model   FB25
2 Drive mode   Electric
3 Type of operation   Seated
4 Load capacity/rated load kg 2500
5 Load centre distance mm 500
6 Wheel base mm 1500
7 Tires size,front   23x9-10-18PR
8 Tires size,rear   18x7-8-14PR
9 Mast/fork carriage tilt forward/backward ° 6/10
10 lowered mast height mm 2045
11 Free lift mm 120
12 Lift height mm 3000
13 Extended mast height mm 3977
14 Coupling height mm 295
15 Overall length mm 3398
16 Overall width mm 1260
17 Fork dimensions mm 40x120x1070
18 Ground clearance ,laden,under mast mm 110
19 Ground clearance,centre of wheelbase mm 120
20 Aisle width for pallets 1000×1200 crossways mm 3588
21 Aisle width for pallets 800×1200 lengthways mm 3718
22 Turning radius mm 2050
23 Travel speed,laden/unladen km/h 13/14
24 Lift speed,laden/unladen m/s 0.30/0.39
25 lowering speed,laden/unladen m/s <0.6
26 Service brake   Hydraulic
27 Drive motor rating kw 11
28 Lift motor rating kw 8.6
29 Battery voltage,nominal capacity V/Ah 48/600/630/700/770
30 Type of drive control   AC
31 Operating pressure for attachments Mpa 17.5
32 Oil volume for attachments l/min 36
