Products Description

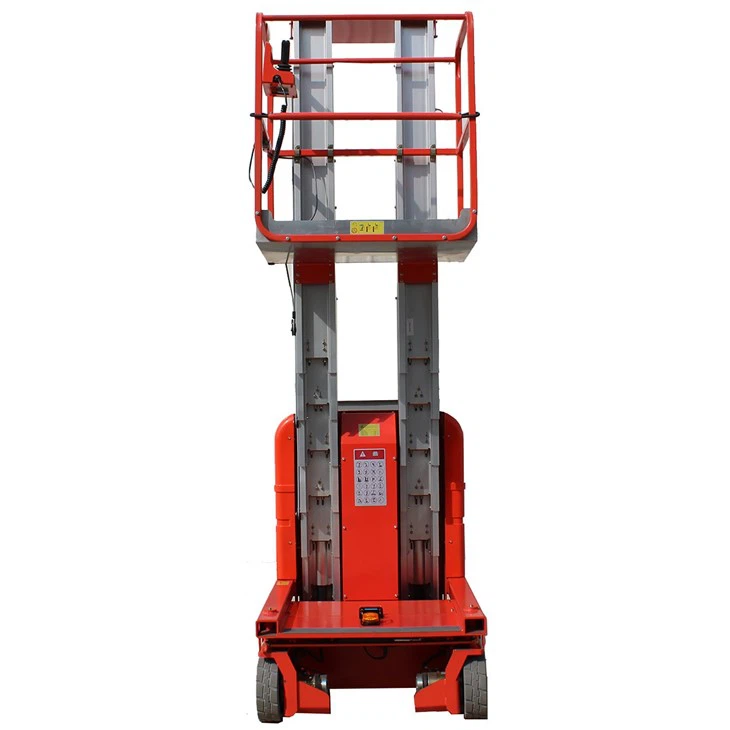

Self-propelled double Mast aluminum alloy aerial working platform manned lifting platform
The integrated handle is easy to operate
Thickened aluminum and multi-plate chain
The loading and unloading port is convenient for forklift fork to enter
Rubber tires absorb the vibrations of driving better
A lower safety center prevents tilt
Safety rope latch
The tilt sensor protects the user when the bench stops running beyond a predetermined Angle
Product parameter
| Model | AMWP7.5-2100 | AMWP9-2100 |
| Max working height (m) | 9.5 | 11 |
| Max platform height (m) | 7.5 | 9 |
| Loading capacity (kg) | 200 | 150 |
| Occupants | 1 | 1 |
| Overlength (m) | 1.46 | 1.46 |
| Overall width (m) | 1.01 | 1.01 |
| Overall height (m) | 1.99 | 1.99 |
| Platform seize(m) | 1*0.65 | 1*0.65 |
| Wheelbase (m) | 1.14 | 1.14 |
| Turning radius (m) | 0.3 | 0.3 |
| Travel speed (km/h) | 4 | 4 |
| Travel speed (raised) (km/h) | 1.1 | 1.1 |
| Up/down speed (sec) | 48/40 | 56/49 |
| Gradeability | 25% | 25% |
| Drive tires (mm) | 305*100 | 305*100 |
| Drive Motors | 2*24VDC/0.5KW | 2*24VDC/0.5KW |
| Lifting motor | 24VDC/1.2 kW | 24VDC/1.2 kW |
| Battrey | 2*12V/100Ah | 2*12V/100Ah |
| Changer | 24V/15A | 24V/15A |
| Weight (kg) | 1270 | 1345 |
We focus on the research and development of new energy and technology to further enhance the low emission level of our Double Mast Self-propelled Lifting Platform (9.5-11 m). Our company has adhered to the business philosophy of "talent as capital, technology as motivation, and customer needs as our responsibility. The company continues to open up the market, with the customer-first business and service concept, and work with you to advance and create brilliance together. Our company adheres to the principle of 'quality, honesty, and excellence' and dedicates first-class products to customers.
As a professional brand in the Double Mast Self-propelled Lifting Platform (9.5-11m) field, we have now become a customized Double Mast Self-propelled Lifting Platform (9.5-11m) company integrating a variety of products. The sales channels are divided into franchise, direct sales, and domestic and foreign bulk businesses. Today's pay, tomorrow's return. We always think that if we put in the effort, it will pay off. Therefore, our company always requires employees to be diligent and not eager for quick success. Finishing has always been our constant purpose. Good products are in control of the details; we check every level and strive to perfect the details of the product.
Product parameter
| Model | AMWP7.5-2100 | AMWP9-2100 |
| Max working height (m) | 9.5 | 11 |
| Max platform height (m) | 7.5 | 9 |
| Loading capacity (kg) | 200 | 150 |
| Occupants | 1 | 1 |
| Overlength (m) | 1.46 | 1.46 |
| Overall width (m) | 1.01 | 1.01 |
| Overall height (m) | 1.99 | 1.99 |
| Platform seize(m) | 1*0.65 | 1*0.65 |
| Wheelbase (m) | 1.14 | 1.14 |
| Turning radius (m) | 0.3 | 0.3 |
| Travel speed (km/h) | 4 | 4 |
| Travel speed (raised) (km/h) | 1.1 | 1.1 |
| Up/down speed (sec) | 48/40 | 56/49 |
| Gradeability | 25% | 25% |
| Drive tires (mm) | 305*100 | 305*100 |
| Drive Motors | 2*24VDC/0.5KW | 2*24VDC/0.5KW |
| Lifting motor | 24VDC/1.2 kW | 24VDC/1.2 kW |
| Battrey | 2*12V/100Ah | 2*12V/100Ah |
| Changer | 24V/15A | 24V/15A |
| Weight (kg) | 1270 | 1345 |
