Products Description

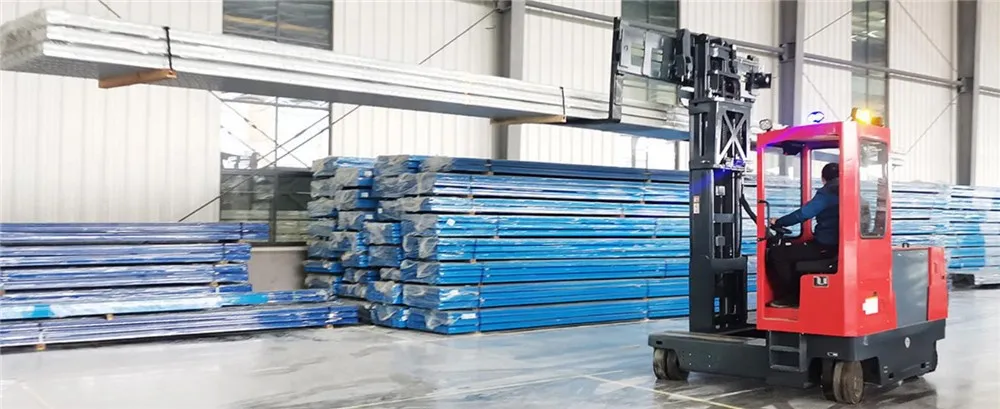

The MQC series multi-direction forward forklift has a carrying capacity of 3.5 tons; the door frame can move forward or be retractable; it is equipped with widening and spacing forks and four-wheel steering independent control and can run straight, sideways, or obliquely and turn in place. The side has a small channel, especially suitable for long material working conditions.
Multiple driving modes
Straight running, side running, oblique running, in situ rotation, and a key switch are suitable for long material handling and storage operations.
High speed and efficient work
Equipped with two sets of large-power AC drive motors, it provides abundant power. Equipped with an electromagnetic brake to ensure excellent braking performance.
Excellent operating vision
According to the ergonomic design of the cab, to provide wide operating space, left and right and front 270° good vision is safe.
Safe and comfortable operation
With an OPS suspension seat, ride comfortably. When leaving the seat, the vehicle action stops immediately, and the operation is safe.
Indoor and outdoor one-stop handling
Solid rubber tire, excellent road adaptability, easy to cope with wet/pitted complex conditions, indoor and outdoor can be used.
Man-machine engineering design
Integrated handle, easy operation, multi-function intelligent dashboard, wheel display function, and more comfortable and convenient operation.
| Product Parameter | ||
| Model | MQC35 | |
| Power type | Battery | |
| Way of driving | Seated | |
| Rated load | kg | 3500 |
| Load center distance | mm | 600 |
| Vehicle weight (including battery) | kg | 6370 |
| Fork frame inclination front/rear | deg | 2/4 |
| Lifting height | mm | 6000 |
| Overall length | mm | 2330 |
| Overall Width | mm | 2435/2860 |
| Fork size | mm | 1200x150x50 |
| Fork outside distance | mm | 610-2800 |
| Mast forward distance | mm | 1300 |
| Travel speed with full load/no load | km/h | 7/8 |
| Battery voltage/rated capacity | V/AH | 45/560 |
| Product Parameter | ||
| Model | MQC35 | |
| Power type | Battery | |
| Way of driving | Seated | |
| Rated load | kg | 3500 |
| Load center distance | mm | 600 |
| Vehicle weight (including battery) | kg | 6370 |
| Fork frame inclination front/rear | deg | 2/4 |
| Lifting height | mm | 6000 |
| Overall length | mm | 2330 |
| Overall Width | mm | 2435/2860 |
| Fork size | mm | 1200x150x50 |
| Fork outside distance | mm | 610-2800 |
| Mast forward distance | mm | 1300 |
| Travel speed with full load/no load | km/h | 7/8 |
| Battery voltage/rated capacity | V/AH | 45/560 |
