Product description
The rough-terrain forklift has become an essential tool in many industries due to its versatility and efficiency.
1. Off-Road Capability: All-terrain forklifts are built with powerful motors and sturdy wheels that allow them to go anywhere. They can handle uneven terrain such as mud, rocky surfaces, and steep slopes, making them ideal for construction sites, mining areas, and forestry operations.
2. Higher height and lifting capacity: All-terrain forklifts have higher lift heights and lifting capacities than ordinary forklifts. This makes them suitable for lifting heavy machinery and materials in areas that normal forklifts cannot reach.
3. Improved Visibility: The elevated driving position of an all-terrain forklift provides better visibility to the operator, making it easier to navigate through uneven terrain. This reduces the risk of accidents and makes it safer to use on construction sites.
4. Versatility: All-terrain forklifts can be customized with a variety of accessories, such as forks, buckets, and clamps. This makes them suitable for various applications, such as loading and unloading trucks, moving materials on a construction site, and even removing snow.
Equipped with super wide off-road tires, off-road performance is good
Electronic hydraulic reversing valve, smoother shifting, increase operating comfort
The entire car is equipped as standard with LED lamps and a high exhaust, and the intake system is equipped with an intake cover as standard.
Minimum ground clearance so that the center of the vehicle is downwards, stability. The porch angle should reach 10 to 12"
Hollow pedal design, will not hide dirt, simple rinsing, brand new
Adopt half-pack suspension seat and safety belt to ensure comfortable and safe operation
Optional driving position: front and rear windshield, cab (optional air heater, fan, fire extinguisher and ignition switch in cab)
Accessories can be added, such as an integral sideshifter, rotator, sideshift fork, etc.
Power diversification
Optional motors: ISUZU, YANMAR, Mitsubishi, XINCHAI, etc.
| 2.5 - 4.0 Tons 2WD Rough Terrain Forklift Parameter | ||||||
| Model | FD25-S | FD30-S | FD35-S | FD40-S | ||
| Driving mode | Diesel | |||||
| Capacity | kg | 2500 | 3000 | 3500 | 4000 | |
| Loading center | millimeter | 500 | ||||
| Lifting height | millimeter | 3000 | ||||
| Mast tilt angle (F/R) | grade | 6/12 | ||||
| Front overhang | millimeter | 545 | 590 | |||
| wheelbase | millimeter | 1850 | ||||
| Tread (F/R) | millimeter | 1250/1205 | 1300/1205 | |||
| Service brake | Hydraulic | |||||
| Parking braking | Mechanical | |||||
| Lift speed (full load) | mm/s | 450 | 440 | 420 | ||
| Descent rate | mm/s | full load (<600, no-load> 300) | ||||
| Running speed (no load) | kilometres per hour | 22 | ||||
| Maximum slope | percent | 17 | 16 | 16 | 16 | |
| Battery | V/Ah | 12/80 | ||||
| Front/rear tire | 12-16.5-14PR/27x10.5-15PR | 14-17.5-16PR/10-16.5-12PR | ||||
| Service weight | kg | 4650 | 4800 | 4950 | ||
| Fork size | TxWxL | millimeter | 45x122x1070 | 50x122x1070 | 50x150x1070 | |
| Width | millimeter | 1550 | 1650 | |||
| Mast height | millimeter | 4350 | ||||
| OverheadGuard Height | millimeter | 2210 | 2250 | |||
| min. Floor Clarity | Mast | millimeter | 220 | |||
| Wheelbase | millimeter | 310 | 350 | |||
FAQ
Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.
Q: What is the payment term?
A: Normally we accept TT and LC at sight.
Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose from. We can customize the color according to your color number.
Q: Can I see the production progress after ordering?
A: Yes, during production, we can have a video call, and we could take photos/videos for your reference.
Q: What certification do you have?
A: Our company has passed ISO 9001:2008, and all of the forklifts have CE certification.
Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have a 1-year warranty for each machine. Within the 1-year warranty, if any parts fail due to quality issues, the new parts will be sent to you free of charge within 7 working days. We have a professional after-sales department to support you at any time.
Q: How can I get the best price?
A: Price is the most concerning problem of every customer if you want to know the price. We need to know your detailed requirements.
Product Parameter
| Model | FD20J | FD25J | FD30J | FD35J | ||||
| 1 | Features | Power type | kg | Diesel | Diesel | Diesel | Diesel | |
| 2 | Rated load | mm | 2000 | 2500 | 3000 | 3500 | ||
| 3 | Load center distance | mm | 500 | 500 | 500 | 500 | ||
| 4 | Lift height | mm | 3000 | 3000 | 3000 | 3000 | ||
| 5 | Free lift height | mm | 190 | 190 | 130 | 145 | ||
| 6 | Fork size | LxWxT | mm | 1070x122x40 | 1070x122x40 | 1070x125x45 | 1070x125x45 | |
| 7 | Mast tilt angle | FR/RR | 6//12 | 6//12 | 6//12 | 6//12 | ||
| 8 | Minimum turning radius | mm | 2245 | 2300 | 2500 | 2575 | ||
| 9 | Minimum right-angle stacking aisle width | mm | 4021 | 4076 | 4285 | 4370 | ||
| 10 | Minimum right angle aisle width | mm | 2240 | 2295 | 2495 | 2570 | ||
| 11 | Minimum ground clearance | mm | 115 | 115 | 135 | 135 | ||
| 12 | Height of overhead guard | mm | 2090 | 2090 | 2105 | 2105 | ||
| 13 | Overhang (FR) | mm | 476 | 476 | 485 | 495 | ||
| 14 | Performance | Maximum travel speed | Full load | km/h | 19 | 19 | 19 | 19 |
| 15 | Maximum lift speed | Full load | mm/s | 530 | 490 | 460 | 430 | |
| 16 | Maximum drawbar pull | Full load | KW | 17 | 17 | 23.5 | 19 | |
| 17 | Gradeability | % | 20 | 20 | 20 | 20 | ||
| 18 | Dimensions | Overall length | Without forks | mm | 2535 | 2595 | 2740 | 2725 |
| 19 | Overall width | mm | 1150 | 1150 | 1150 | 1150 | ||
| 20 | Fork height at maximum lift (with backrest) | mm | 4020 | 4020 | 4255 | 4230 | ||
| 21 | Mast height | mm | 1995 | 1995 | 2080 | 2120 | ||
| 22 | Chassis | Tires | Front wheel | 7.00-12-12PR | 7.00-12-12PR | 28x9-15-14PR | 28x9-15-14PR | |
| 23 | Rear wheel | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | |||
| 24 | Wheelbase | mm | 1600 | 1600 | 1700 | 1700 | ||
| 25 | Tread | Front wheel/rear wheel | mm | 970/970 | 970/970 | 1000/970 | 1000/970 | |
| 26 | Self-weight | Without load | kg | 3400 | 3800 | 4300 | 4820 | |
| 27 | Drive | Battery | Voltage/capacity | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 |
| 28 | Engine | Model | AK-C240PKJ-30 | AK-C240PKJ-30 | AK-C240PKJ-30 | AK-C240PKJ-30 | ||
| 29 | Rated output | kW/rpm | 34.3~ 34.3~36.5/2500 | 34.3~ 34.3~36.5/2500 | 34.3~ 34.3~36.5/2500 | 34.3~ 34.3~36.5/2500 | ||
| 30 | Rated torque | Nm/rpm | 137.7/1800 | 137.7/1800 | 137.7/1800 | 137.7/1800 | ||
| 31 | Bore x stroke | mm | 86 x 102 | 86 x 102 | 86 x 102 | 86 x 102 | ||
| 32 | Number of cylinders | 4 | 4 | 4 | 4 | |||
| 33 | Displacement | L | 2.369 | 2.369 | 2.369 | 2.369 | ||
| 34 | Fuel tank capacity | l | 60 | 60 | 60 | 60 | ||
| 35 | Transmissions (FWD/RWD) | 1/1 electro-hydraulic directional valve | ||||||
| 36 | Operating pressure | Mpa | 18.5 | |||||
| 37 | Supplement | Tire type (FR/RR) | Pneumatic | Pneumatic | Pneumatic | Pneumatic | ||
| 38 | Number of wheels (FR/RR) | Pcs | 2/2 | 2/2 | 2/2 | 2/2 | ||
| 39 | Lowering speed (full load) | mm/s | 450 | 450 | 500 | 350 | ||
| 40 | Lowering speed (no load) | mm/s | 400 | 400 | 490 | 340 | ||
| 41 | Axle load distribution (full load) (FR/RR) | kg | 4752/648 | 5544/756 | 6340/920 | 7040/1080 | ||
| 42 | Axle load distribution (FNO load) (FR/RR) | kg | 1530/1870 | 1710/2090 | 1700/2580 | 1720-3100 | ||
Calculation of minimum right-angle stacking circle width: Pallet size: 1100 mm x 1100 mm, total clearance (FR/RR): 100 mm
ENGINE TYPE SELECTION AND PARAMETERS
| Manufacturer | Power type | Model | Number of cylinders | Bore x stroke | Total displacement | Rated output/RPM | Rated torque/RPM | Emission standard | |
| mm | L | kW/rpm | Nm/rpm | ||||||
| 1 | Japan | Gasoline | K21/LPG | 4 | 83x100 | 2.164 | 31.2/2250 | 143.7/1600 | |
| 2 | Japan | Gasoline | K25/LPG | 4 | 89 x 100 | 2.488 | 37.4/2300 | 176.5/1600 | |
| 3 | Japan | Diesel | C240PKJ-30 | 4 | 86 x 102 | 2.369 | 34.3 ~ 36.5/2500 | 137.7/1800 | EU stage IIIA |
| 4 | Japan | Diesel | 4JG2PE-01 | 4 | 95.4 x 107 | 3.059 | 44.9/2450 | 184.7/1700 | EU stage II |
| 5 | Yanmar, Japan | Diesel | 4TNE98 | 4 | 98 x110 | 3.319 | 42.1/2300 | 177.6 ~ 196.3/1700+ 100 | EU stage II, tier 3 |
| 6 | Yanmar, Japan | Diesel | TNV94L | 4 | 94 x110 | 3.054 | 34.6/2400 | 191.5-208.5/150 | EU stage IIIA |

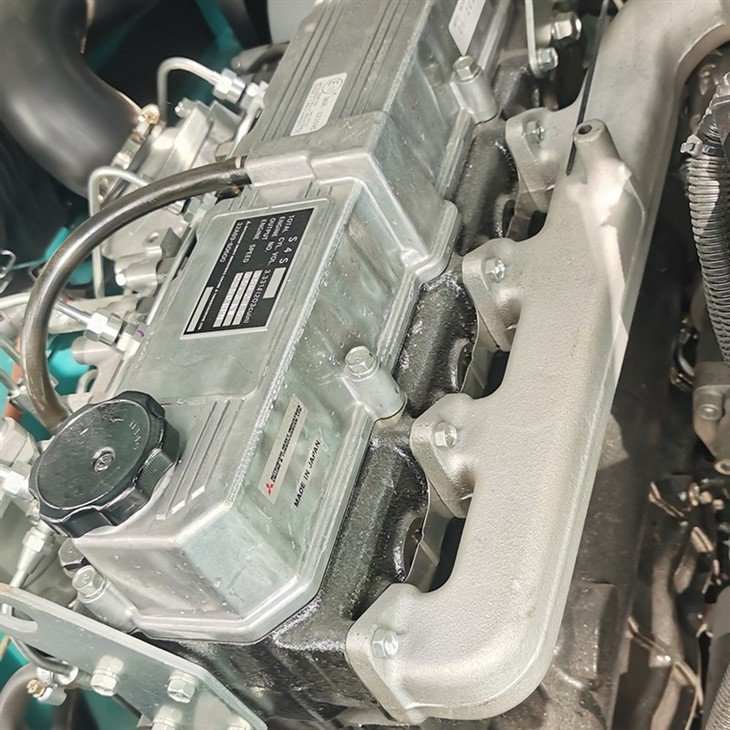

| 7 | Mitsubishi, Japan | Diesel | S4S-455 | 4 | 94 x 120 | 3.330 | 35.3/2250 | 170/1700 | EU stage IIIA |
| 8 | Xinchai, China | Diesel | C490BPG-30 | 4 | 90 x105 | 2.670 | 35.3/2250 | 156-1700-1900 | EU stage III |
| 9 | Xinchai, China | Diesel | A495BPG-510A | 4 | 95 x105 | 2.980 | 42/2650 | 174/1800-2000 | National Stage II |
| 10 | Xinchai, China | Diesel | 4D27G31 | 4 | 90 x 105 | 2.670 | 36.8/2500 | 156-1700-1900 | National Stage II |
| 11 | Xinchai, China | Diesel | 4D30G31 | 4 | 95 x105 | 2.98 | 36.8/2650 | 174/1800-2000 | National Stage II |
