High-Performance Hydraulic Diesel Forklift Truck – Precision Lifting & Rugged Power
Engineered for heavy-duty commercial lifting across challenging outdoor and industrial environments. Combining advanced high-pressure hydraulic transmission, fuel-efficient diesel power, and factory-direct wholesale pricing to maximize your operational output.
🔧 Advanced Hydraulic Transmission
Equipped with high-precision hydraulic valves, reinforced lift cylinders, and smooth power steering to deliver effortless load control, rapid response, and high operational safety under max payloads.
⚙️ Configurable High-Torque Power
Powered by world-class diesel engine options (including Isuzu, Cummins, and Quanchai variants) offering high low-end torque, reliable gradeability, and long multi-shift outdoor endurance.
🌐 Direct Manufacturer Wholesale
Sourced directly from Nuo Shington in Hangzhou. We offer unbeatable factory-direct wholesale pricing, custom mast configurations, hydraulic attachments, and global shipping support.
Primary B2B Applications & Industry Use Cases
The Nuo Shington hydraulic diesel forklift truck is trusted across demanding outdoor commercial operations:
- Construction Sites & Material Yards: Reliable hydraulic power for lifting heavy bricks, steel beams, and concrete components over rough terrain.
- Ports, Freight Hubs & Container Terminals: High-torque traction and precise hydraulic positioning for rapid cargo staging and freight consolidation.
- Timber Yards & Heavy Manufacturing: Rugged chassis design and durable hydraulic oil circuits built to withstand multi-shift, dust-heavy conditions.
- Logistics & Open-Air Warehouses: Smooth hydraulic control ensuring minimal cargo displacement during high-elevation stacking operations.
Looking for Reliable Hydraulic Diesel Forklift Trucks at Factory Prices?
Contact our commercial equipment team today for wholesale price quotes, bulk order discounts, hydraulic specification sheets, and rapid global shipping.
Products Description
Forklift trucks are a popular choice for many industries due to their ability to lift and move heavy loads with ease. including their powerful performance and ease of use.
Forklift trucks are renowned for their impressive power. These machines have high-performance hydraulic systems that enable them to easily lift and move heavy loads. Hydraulic forklift trucks are an essential piece of equipment for industries that deal with heavy materials, such as construction, manufacturing, and logistics. This power allows them to complete tasks quickly and efficiently, saving businesses time and money.
They are equipped with a range of features that make them easy to operate, such as intuitive controls, ergonomic seating, and excellent visibility. This means that operators can quickly learn how to use the machine, reducing the amount of time spent on staff training and increasing productivity. The maneuverability of hydraulic forklift trucks also means that they can be used in smaller spaces, enabling businesses to maximize their workspace and increase efficiency.
Another major advantage of using forklift trucks is their versatility. They can be customized to perform a range of different tasks, making them suitable for a variety of industries and applications. Whether you need to lift heavy machinery, transport materials across a construction site, or load and unload pallets in a warehouse, hydraulic forklift trucks are equipped to handle the job.
Product physical display
Intelligent liquid crystal instrument
The driver can understand the working status of the engine and forklift truck in real time through the LCD screen
Suspension cab
Integrated hydraulic cushion design improves the cockpit transportation smoothness, structural optimization, sound absorption and noise reduction
Open astern view
Optimize the balance weight design to increase the driver's rear view and ensure better visibility when reversing to determine distance

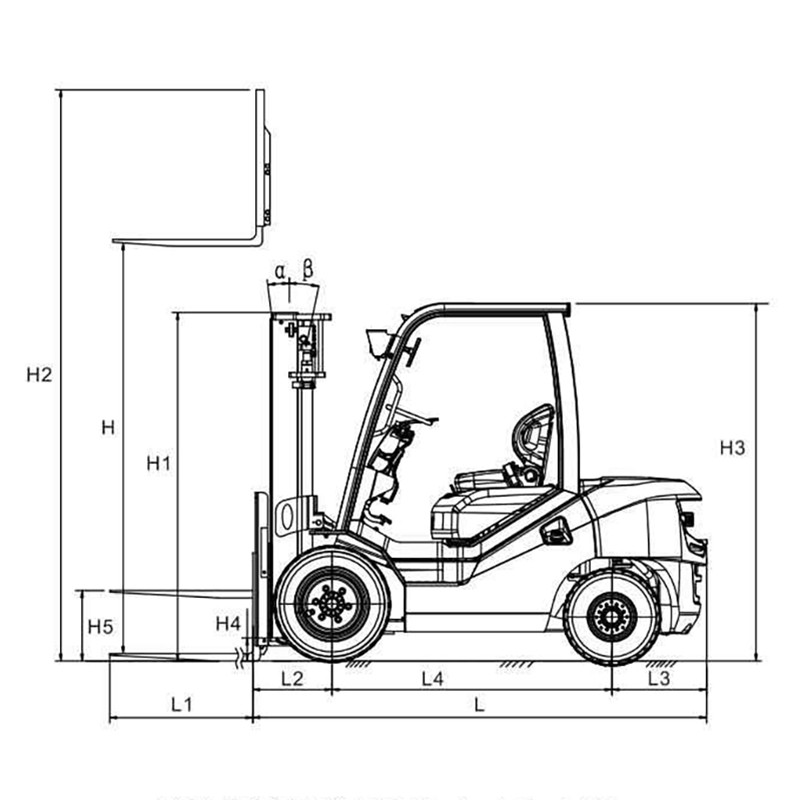

Product Parameter
| Model | FD30 | ||
| Power Type | Diesel | ||
| Rated Capacity | kg | 3000 | |
| Load Center | MM | 500 | |
| Service Weight | kg | 4250 | |
| Tyre | |||
| Tire Type (Front/Rear) Solid tyre/Pneumatic | Pneumatic | ||
| Wheel number X Drive wheel (Front/Rear) | 2x/2 | ||
| Tyre Size (Front) | 28X9-15-14PR | ||
| Tyre Size (Rear) | 6.50-10-10PR | ||
| Front Tread | W1 | mm | 1000 |
| Rear Tread | W2 | mm | 970 |
| Wheelbase | L4 | mm | 1700 |
| Size | |||
| Fork Size (LxWxT) | L1 | mm | 1070X120X45 |
| Mast Tilt Angle (F/R) | deg | 6/12 | |
| Lift Height | H | mm | 3000 |
| Length to Face of fork | L | mm | 2730 |
| Overall Width | W | mm | 1225 |
| Overhead Guard Height | H3 | mm | 2150 |
| Front Overhang | L2 | mm | 480 |
| Rear Overhang | L3 | mm | 550 |
| Performance | |||
| Max. Travel Speed (Full load/No load) | km/h | 19/20 | |
| Lifting Speed (Full load/No load) | mm/s | 510/550 | |
| Lowering Speed (Full load/No load) | mm/s | ≤600/300≥ | |
| Max. Gradeability (Full load) | % | ||
| Power | |||
| Engine Model | XINCHAI4D27G31 | ||
| Rated output | Kw/rpm | 36.8/2650 | |
| rated torque | Nm/rpm | 156/1700~1900 | |
| No. of Cylinders | 4 | ||
| Bore x Stroke | mm | 90X105 | |
| Displacement | L | 2.67 | |
| Fuel Tank Capacity | L | 60 | |
| Battery (Voltage/Capacity) | V/Ah | 12/80 | |
| Transmission Type | hydraulic | ||
| Stage FWD/RVS | 1/1 | ||
| Operating Pressure | Mpa | 18 |
Production workshop show
| Model | FD30 | ||
| Power Type | Diesel | ||
| Rated Capacity | kg | 3000 | |
| Load Center | MM | 500 | |
| Service Weight | kg | 4250 | |
| Tyre | |||
| Tire Type (Front/Rear) Solid tyre/Pneumatic | Pneumatic | ||
| Wheel number X Drive wheel (Front/Rear) | 2x/2 | ||
| Tyre Size (Front) | 28X9-15-14PR | ||
| Tyre Size (Rear) | 6.50-10-10PR | ||
| Front Tread | W1 | mm | 1000 |
| Rear Tread | W2 | mm | 970 |
| Wheelbase | L4 | mm | 1700 |
| Size | |||
| Fork Size (LxWxT) | L1 | mm | 1070X120X45 |
| Mast Tilt Angle (F/R) | deg | 6/12 | |
| Lift Height | H | mm | 3000 |
| Length to Face of fork | L | mm | 2730 |
| Overall Width | W | mm | 1225 |
| Overhead Guard Height | H3 | mm | 2150 |
| Front Overhang | L2 | mm | 480 |
| Rear Overhang | L3 | mm | 550 |
| Performance | |||
| Max. Travel Speed (Full load/No load) | km/h | 19/20 | |
| Lifting Speed (Full load/No load) | mm/s | 510/550 | |
| Lowering Speed (Full load/No load) | mm/s | ≤600/300≥ | |
| Max. Gradeability (Full load) | % | ||
| Power | |||
| Engine Model | XINCHAI4D27G31 | ||
| Rated output | Kw/rpm | 36.8/2650 | |
| rated torque | Nm/rpm | 156/1700~1900 | |
| No. of Cylinders | 4 | ||
| Bore x Stroke | mm | 90X105 | |
| Displacement | L | 2.67 | |
| Fuel Tank Capacity | L | 60 | |
| Battery (Voltage/Capacity) | V/Ah | 12/80 | |
| Transmission Type | hydraulic | ||
| Stage FWD/RVS | 1/1 | ||
| Operating Pressure | Mpa | 18 |
