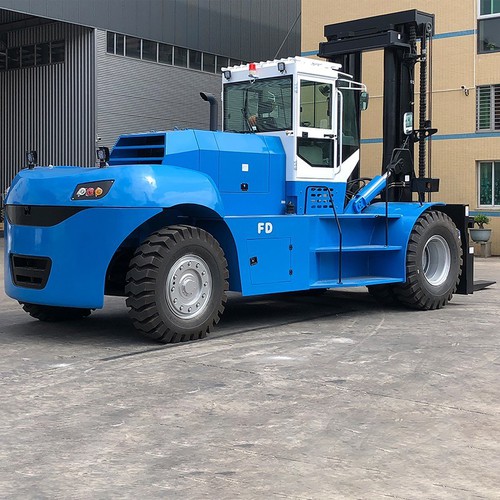

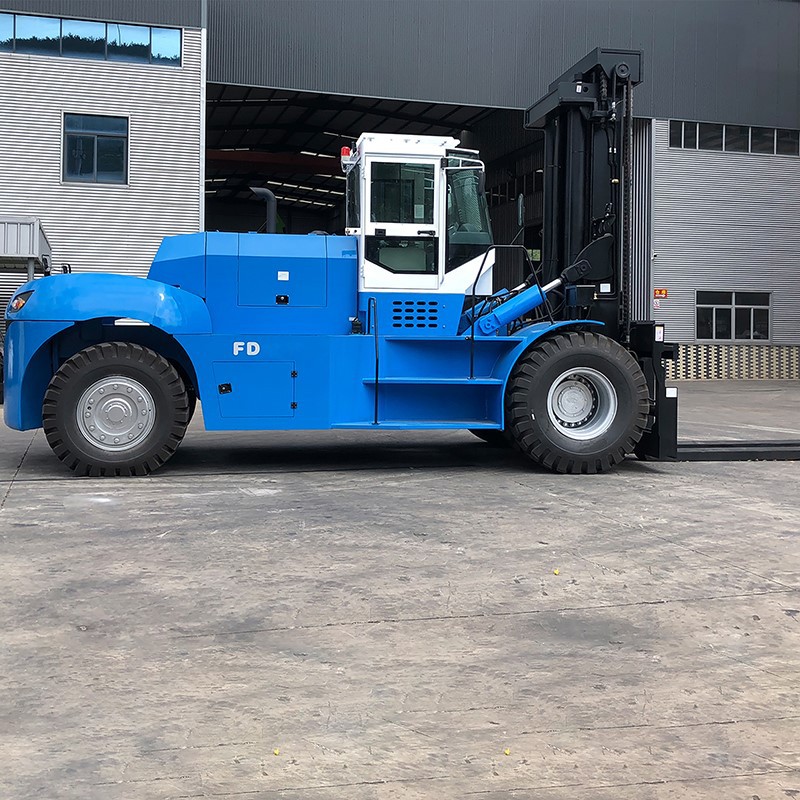

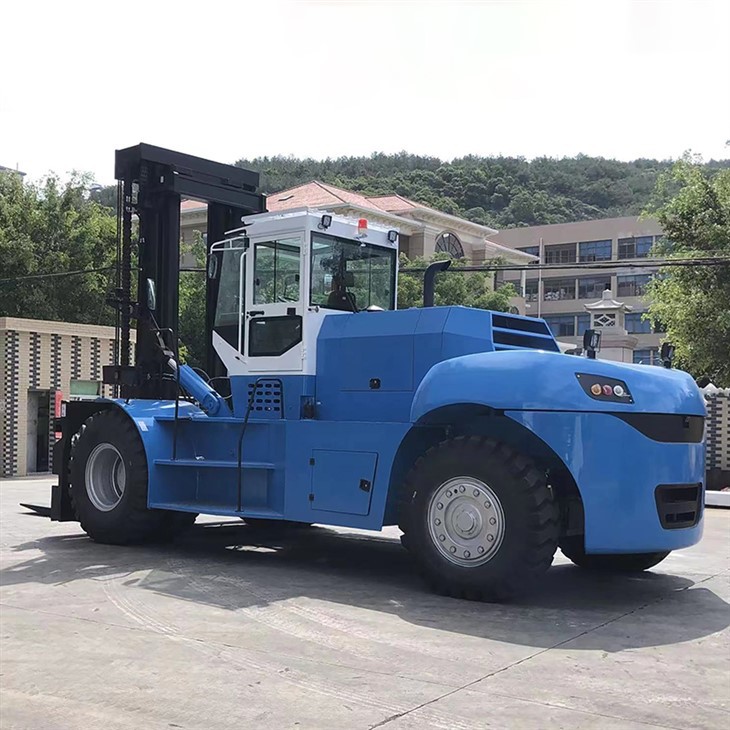

Heavy Container Diesel Forklift
video
Heavy Container Diesel Forklift

Heavy Container Diesel Forklift

Rated Load:35000Kg
Load Center:1220mm
Wheelbase:5000mm
Send Inquiry
Description
Products Description

When it comes to heavy lifting of containers and other large materials, diesel forklifts are a reliable and efficient choice. Among them, the heavy container diesel forklift stands out for its specific features that make it suitable for challenging environments and demanding tasks.



Heavy container diesel forklifts are designed to work in rough and tough environments, such as construction sites, ports, and warehouses. They are capable of moving heavy loads weighing up to 35 tons with ease and efficiency. These forklifts are most commonly used in moving and stacking shipping containers, but they can handle other oversized cargo too.



One of the main advantages of heavy container diesel forklifts is their power and performance. Equipped with diesel engines, these forklifts can operate for long hours and handle heavy loads with ease. They come with wide tires for stability and maneuverability, and have a high lifting capacity and long reach.



Heavy container diesel forklifts also have a cabin that provides maximum comfort and safety for the operator. The cabin is designed to reduce noise and vibration, which enhances the operator's comfort and reduces fatigue. The cabin is also equipped with safety features such as a seat belt and roll-over protection.





The use of heavy container diesel forklifts can bring several benefits to businesses. They can save time and money by handling heavy loads efficiently, and they can increase productivity by reducing the time needed for loading and unloading. This type of forklift can also improve safety by reducing the risk of accidents and injuries.



Heavy container diesel forklifts are an excellent choice for businesses that need to handle heavy loads in challenging environments. They offer power, performance, and safety features that make the operator's work easier and more comfortable. The use of diesel forklifts can bring many benefits, including increased productivity, saved time and money, and reduced environmental impact. If you are looking for a reliable and efficient forklift for heavy container lifting, a heavy container diesel forklift can be the right choice for you.



2

1

Design standards: well-known European port machinery design company design, with the same period of European product technology level synchronization, design standards not only meet the national standards, but also meet the European Union standards, higher safety;



Power system: Cummins original imported engine, high performance, low fuel consumption, low speed and high torque, large reserve power and strong power;



Gearbox: imported gearbox, using electro-hydraulic shift control system, smooth operation, high reliability;



Drive axle: heavy duty drive axle, large bearing capacity, with fully closed maintenance-free brake wet brake, safe and reliable, long service life;

3

Hydraulic system: Parker variable system, high efficiency and energy saving;



Safety auxiliary system: standard visual reversing warning system, safe and reliable;



High-strength structural parts: the frame structure designed with high-strength plate is durable;



Large maintenance space: lift the cab and tip over the hood to fully release the internal maintenance space.

Low Maintenance Costs
The maintenance-free motor eliminates the need for frequent carbon brush replacement, reducing operating costs.

Item

Project Description Unit

FD350

Features

Rated Load

Kg

35000

Load Center

mm

1220

Wheelbase

mm

5000

Weight

Weight

kg

42000

Chassis

Tire Specs:Front



16.00-25

Tire Specs:Rear



16.00-25

Tires Qty,front/rear(X-dreve wheels)



4/2

Wheel tread:Front

mm

2270

Wheel tread:Rear

mm

2230

Dimensions

Mast/carriage tilt angle(front/rear)

Degree(°)

6/12

Mast height(fork lowering)

mm

4060

Mast lifting height

mm

4000

Max.height

mm

6030

Height to head guard(height to cab)

mm

3560

Overall height(with forks)

mm

9850

Fork front verticaal sueface to the rear end of the vehicle

mm

7450

Overall width

mm

3360

Fork dimension

mm

2400*320*120










02

03

product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500

05

06

KE8JGCWQPI70NA8Q





Model     FD350
Features Rated Load Kg 35000
Load Center mm 1220
Wheelbase mm 5000
Weight Weight kg 42000
Chassis Tire Specs:Front   16.00-25
Tire Specs:Rear   16.00-25
Tires Qty,front/rear(X-dreve wheels)   4/2
Wheel tread:Front mm 2270
Wheel tread:Rear mm 2230
Dimensions Mast/carriage tilt angle(front/rear) Degree(°) 6/12
Mast height(fork lowering) mm 4060
Mast lifting height mm 4000
Max.height mm 6030
height to head guard(height to cab) mm 3560
Overall height(with forks) mm 9850
Fork front verticaal sueface to the rear end of the vehicle mm 7450
Overall width mm 3360
Fork dimension mm 2400*320*120
Fork carriage width mm 3130
Mast min ground(with load) mm 350
Wheelbase center min ground(with load) mm 400
Min.turning Radius mm 7650
Travel speed(with load/without load) km/h 25/28
Performance Max.lifting speed(with load/without load) mm/s 260/280
tractionn KN 200
gradeability(with load/without load) % 20/20
Engine Engine brand/model   Weichai/Cummins
Cylinder No 6
Others Transmission gears(Front/rear)   2/1
