Products Description
Product Description

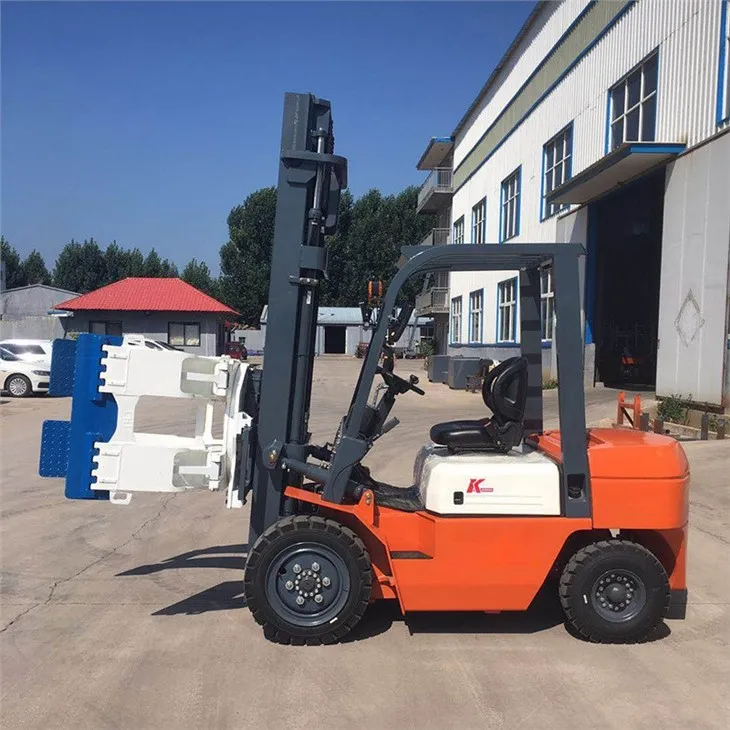

The Heavy Diesel Forklift runs on diesel fuel and is a kind of equipment widely used in industrial applications. This kind of equipment has the lifting ability to handle high load, and is often used to load and unload large goods or carry materials in the construction site. It has the characteristics of high performance and low fuel consumption, and is equipped with a multifunctional vehicle management system. With its supporting tools, it can help you realize fast and smooth transportation and lifting experience, and effectively improve the efficiency of moving a large number of goods in a short time.
e
(1)High traction
Over 23KN traction with full load.
(2)Climbing ability
It is able to climb a slope over 20% with full load.
(3)High speed
Traveling speed reached over 19km/h with full load.
(4)Load sensing hydraulic system
Load-sensitive hydraulic system ensures the fork to lift with full load while the engine is running idly so as to reduce fuel consumption.
(5)Stable
The center of gravity is moved to the rear and lower part so that the machine stands stable.
Waterproof plug-in, protection level up to IP56, electrical system has good safety and easy maintenance
Double lip sealing pad, reliable sealing of fuel tank;
Level-1 shock absorption:Engine cushioning pad to absorb engine vibration
Level-2 shock absorption:Four corner shock pads in the cab absorb engine shocks and aftershocks
Level-3 shock absorption:Suspension seat absorbs body vibration and increases driving comfort
Low instrument panel:High-definition instrument, more convenient for drivers to control vehicle information
Features
Heavy Diesel Forklift adopts the design of hydraulic steering mechanism, which is very flexible and light to use. This device can complete various operations such as lifting, loading, unloading and moving at high speed, thus reducing the intensity of manual labor. At the same time, its oil cylinder is equipped with a sealed design, which can prevent oil leakage and avoid excessive diesel oil loss. In addition, it has two choices of two-wheel drive and four-wheel drive, which can adapt to different construction sites and applicable places.
| FD25 | ||||
| Product parameter | ||||
| Model | FD15 | FD20 | FD25 | |
| Rated lifting load | kg | 1500 | 2000 | 2500 |
| Load center distance | mm | 500 | ||
| Free lifting height | mm | 100 | 1500 | |
| overall length ( With fork/Without fork ) | mm | 3180/2260 | 3422/2502 | 3646/3576 |
| Width | mm | 1090 | 1170 | |
| Overhead guard height | mm | 2050 | 2070 | |
| Wheelbase | mm | 1400 | 1600 | |
| Minimum ground clearance | mm | 110 | ||
| Mast tilt angle (front/rear) | % | 6°/12° | ||
| Tire no. (before) | 6.5-10-10PR | 7.00x12-12PR | ||
| Tire no. (after) | 5.00-8-10PR | 6.00x9-10PR | ||
| Minimum turning radius (outer side) | mm | 1950 | 2170 | 2240 |
| Minimum right angle aisle width | mm | 3630 | 3900 | 3970 |
| Fork size | mm | 920x100x35 | 1070X100X45 | |
| maximum working speed(Full-load/No-load ) | km/h | 14/15 | 17/19 | |
| maximum lifting speed(Full-load/No-load ) | mm/s | 500/480 | 530/550 | |
| maximum gradeability(Full-load/No-load ) | % | 20/21 | ||
| Forklift weight | kg | 2900 | 3320 | 3680 |
| Engine model | Quanchai/B02-082 | 全柴Quanchai4C2-50V32(国三)/ 全柴Quanchai4C2-50C41(京四) or isuzu | ||
