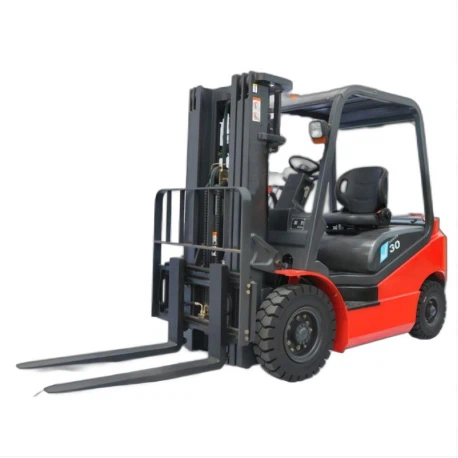

3 Ton Diesel Forklift

3 Ton Diesel Forklift

√ Custom sizes and colors √ Small order accepted √ Highly accurate process √ With incredibly fine detail √ Maintaining an impressive level of durability √ Made in China, door-to-door delivered worldwide
Send Inquiry
Description

The 3 Ton Diesel Forklift is a heavy-duty equipment designed for efficient logistics, warehousing and industrial handling. It is equipped with a powerful diesel engine that provides stable and long-lasting power output, ensuring excellent performance in various working environments. With a rated load capacity of 3 tons, the forklift is suitable for handling heavy goods such as pallets, large mechanical equipment, etc. Its maximum lifting height can reach 3.6 meters, and its free lifting height is 0.3 meters, which meets the loading and unloading needs of goods of different heights.

electric forklift

In addition to its powerful power output, the forklift also performs well in maneuverability. Its forward and reverse speeds can reach 20 kilometers per hour, ensuring fast response and efficient operation. At the same time, the forklift is equipped with an optimized steering system and precise control feedback, allowing the driver to easily cope with narrow passages and complex working environments. In addition, the forklift also has a small minimum turning radius, which improves maneuverability and flexibility in limited spaces.

In addition to the above-mentioned power and control performance, the safety performance of the 3 Ton Diesel Forklift is also trustworthy. It uses high-strength materials and advanced design concepts to ensure the stability and durability of the body structure. At the same time, the forklift is also equipped with a complete safety protection system, such as emergency brakes, anti-skid tires, anti-rollover devices, etc., which effectively ensure the safety of drivers and goods.

While meeting basic performance requirements, 3 Ton Diesel Forklift also pays attention to environmental protection and energy saving. Its diesel engine adopts advanced combustion technology and emission control system, which effectively reduces exhaust emissions and noise pollution. Compared with similar products, its fuel consumption rate is reduced by 10%, and the maximum lifting speed reaches 0.8 m/s, which helps to reduce users' operating costs.

electric forklift

In order to meet the personalized needs of different users, 3 Ton Diesel Forklift provides flexible customization services. Users can choose different configurations and accessories, such as side shifters, rotators, fork extenders, etc. according to the actual working environment and needs, to further improve the operating efficiency and adaptability of the forklift.



Parameter Table



Model     FD30J
1 Power type   kg Diesel
2 Rated load   mm 3000
3 Load center distance   mm 500
4 Lift height   mm 3000
5 Free lift height   mm 130
6 Fork size LxWxT mm 1070x125x45
7 Mast tilt angle FR/RR   6//12
8 Minimum turning radius   mm 2500
9 Height of overhead guard   mm 2105
10 Maximum travel speed Full load km/h 19
11 Maximum lift speed Full load mm/s 460
12 Maximum drawbar pull Full load KW 23.5
13 Gradeability   % 20
14 Overall length Without forks mm 2740
15 Overall width   mm 1150
16 Fork height at maximum lift(with backrest)   mm 4255
17 Mast height   mm 2080
18



Tires

Front wheel   28x9-15-14PR
19 Rear wheel   6.50-10-10PR
20 Wheelbase   mm 1700
21 Tread Front wheel/rear wheel mm 1000/970
22 Self weight Without load kg 4300
23 Battery Voltage/capacity V/Ah 12/80
24 Fuel tank capacity   l 60
