Products Description
Description

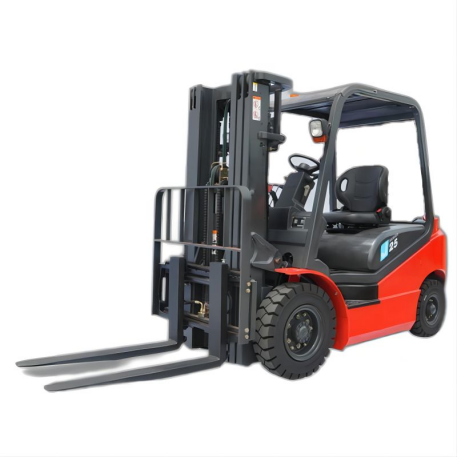

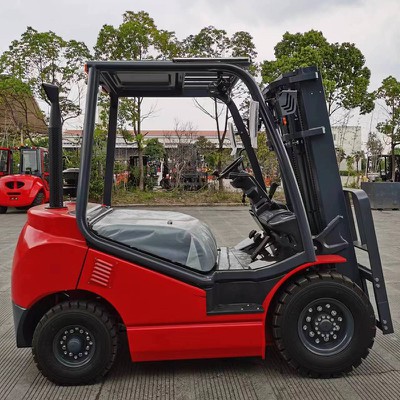

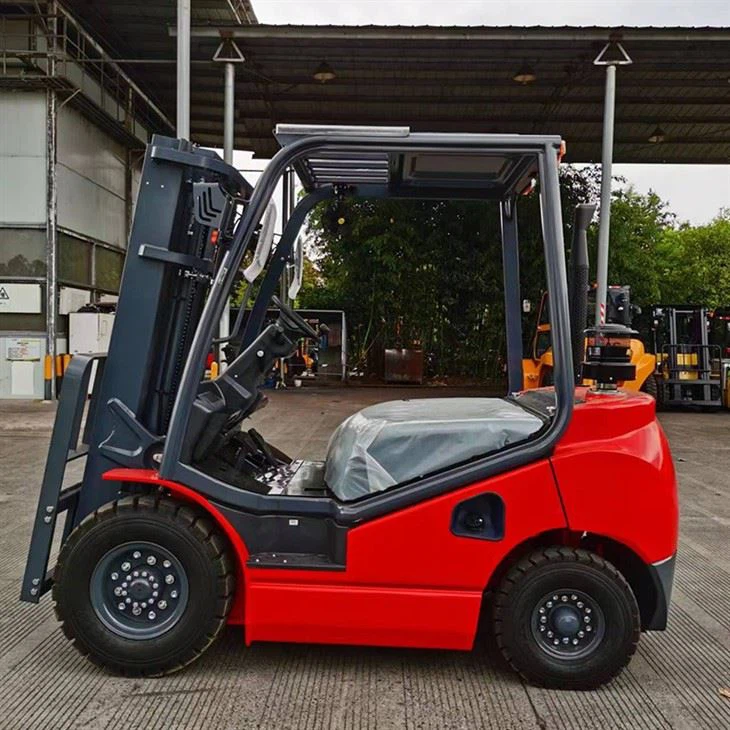

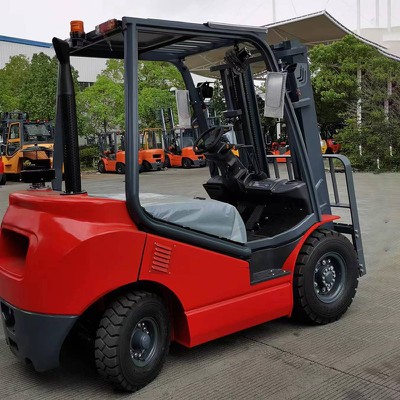

This 2.5 Ton Diesel Forklift is widely used for loading, unloading and material transportation at construction sites and factories. With low fuel consumption, low noise and vibration, it improves operator comfort and overall equipment performance. Equipped with a responsive braking system, it delivers instant emergency stop for reliable operation.
No. 1 Good performance
(1) High traction
Traction reaches over 23 kN under full load.
(2) Climbing ability
It can climb slopes of more than 20% with full load.
(3) High speed
Full-load travel speed exceeds 19 km/h.
(4) Load sensing hydraulic system
The load-sensitive hydraulic system enables fork lifting at idle speed to reduce fuel consumption.
(5) Stable performance
The low and rearward center of gravity ensures stable operation.
No. 2 Safe and reliable
(1) Engine electrical system
The engine adopts imported IP65 waterproof connectors for high reliability.
(2) Integrated oil & fuel tank design
Integrated structure effectively prevents liquid leakage.
No. 3 High efficiency
(1) Low noise
Fully enclosed design with professional acoustic materials for noise reduction.
(2) Low vibration
Adopts industry-leading three-stage shock absorption structure.
No.4 Broad visual field
Features
Transmission and transaxle adopt imported parts for low failure rate and reliable quality.
Integrated hood with internal reinforcing plate features high structural strength.
Optimized heat ducts and high-performance radiator improve overall heat dissipation.
Suspended overhead guard reduces vibration and improves operating comfort.
Fully enclosed dashboard with elegant appearance.

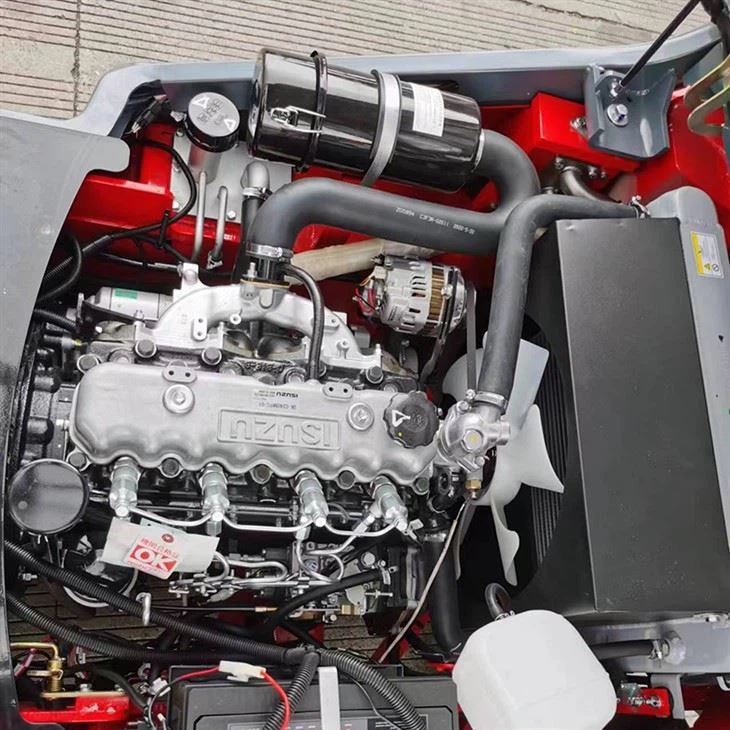

Multiple engine options: ISUZU, MITSUBISHI, XINCHAI, YANMAR.
| FD25J 2.5 Ton Diesel Forklift Technical Parameters | ||||
| No. | Parameter Item | Specification | Unit | Value |
| 1 | Power type | - | - | Diesel |
| 2 | Rated load | - | kg | 2500 |
| 3 | Load center distance | - | mm | 500 |
| 4 | Lift height | - | mm | 3000 |
| 5 | Free lift height | - | mm | 190 |
| 6 | Fork size | L×W×T | mm | 1070×122×40 |
| 7 | Maximum travel speed | Full load | km/h | 19 |
| 8 | Maximum lift speed | Full load | mm/s | 490 |
| 9 | Maximum drawbar pull | Full load | kN | 17 |
| 10 | Gradeability | - | % | 20 |
| 11 | Overall length | Excl. forks | mm | 2595 |
| 12 | Overall width | - | mm | 1150 |
| 13 | Maximum fork height | With backrest | mm | 4020 |
| 14 | Mast height | - | mm | 1995 |
| 15 | Tyres | Front wheel | - | 7.00-12-12PR |
| 16 | Rear wheel | - | 6.00-9-10PR | |
| 17 | Wheelbase | - | mm | 1600 |
| 18 | Tread | Front wheel/rear wheel | mm | 970/970 |
| 19 | Unladen weight | Self-weight | kg | 3800 |
| 20 | Battery | Voltage/capacity | V/Ah | 12/80 |
| 21 | Engine | Model | - | AK-C240PKJ-30 |
| 22 | Rated output | kW/rpm | 34.3~36.5/2500 | |
| 23 | Rated torque | Nm/rpm | 137.7/1800 | |
| 24 | Bore x stroke | mm | 86 x102 | |
| 25 | Number of cylinders | - | 4 | |
| 26 | Displacement | L | 2.369 | |
