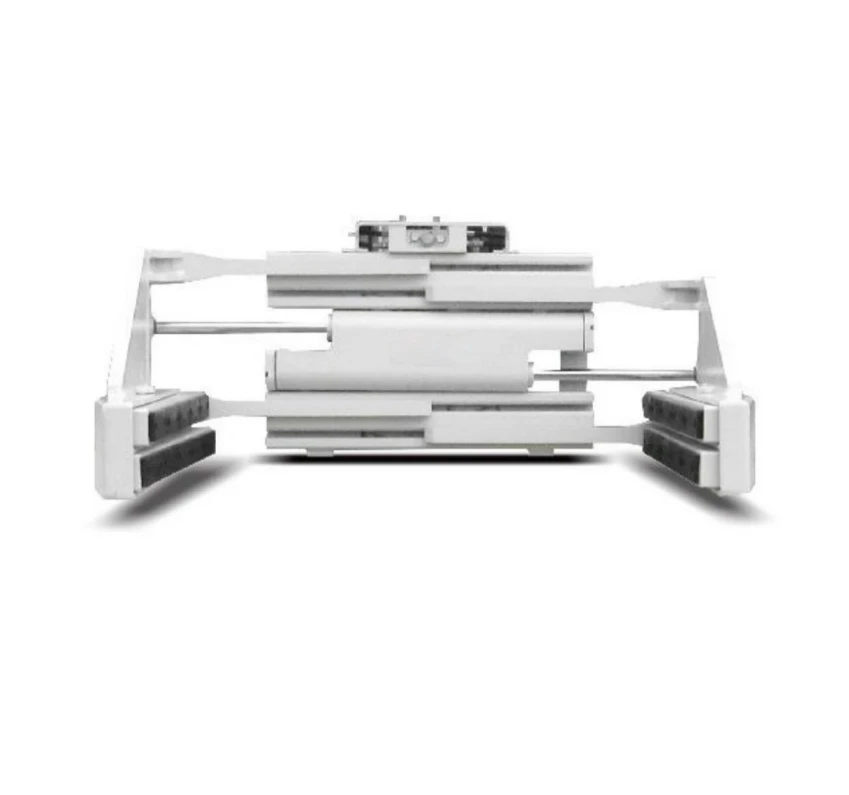

Forklift Brick Block Clamp Attachment

Forklift Brick Block Clamp Attachment

Products Description
Send Inquiry
Description
How To Cooperate With Us?

info@nuoshington.com

Our address

No. 100, No. 18 Street, Hangzhou Economic And Technological Development Zone, Zhejiang Province, China. (ZIP: 310018)

Phone Number

Mob1: +86 18757129507 (Wechat/Whatsapp)

E-mail

info@nuoshington.com

modular-1
Products Description

The forklift attachment brick clamp is specially designed to handle concrete blocks without the use of pallets. Second, the rubber attached to the clips can handle the irregular contours of the block or brick and provide better support. This attachment is widely used on construction sites and in the construction industry. More importantly, our products have high structural strength and durability, which can ensure safe, efficient application and long service life. Finally, our products efficiently handle a wide variety of solid, regular cubic loads at room temperature.



We provide customers with perfect products and high-quality services and strive to create value for customers and become the best partner for users of forklift attachment brick clamps! We strictly control the quality and eliminate defective products, laying a solid foundation for the guarantee of excellent quality. We hope that through our perfect design and manufacture, we can ensure that each product will give full play to its design performance index during its effective use.




Feature

The forklift attachment brick clamp uses side-moving clamp arms, which can make the cargo clamping and side-moving smoother. Secondly, due to the high strength of the clamp arm and the high wear resistance of the wear-resistant block, this greatly improves its safety during handling operations and the longevity of equipment use. More importantly, our products use fixed or hydraulic telescopic booms, which can effectively solve the difficulty in working conditions where the forklift is equipped with a single brick clamp and cannot clamp the far end of the kiln car and the side brick stack. Finally, our valve body adopts a side-shift pressure-reducing valve, which can adjust the pressure and move sideways left and right, which is easy to operate.



SR2XEWC28R1KLWGZGYF2WK0UKQ8YAIEM4ACproduct-1054-365

Model Capacity/Load Center Mounting Class Opening Range Arm Height Arm Length Frame Width Hook Spread Arm Thickness Weight Effective Thickness Vertical Center of Gravity Horizontal Center of Gravity Available Forklift
  kg/mm   O(mm) A(mm) B(mm) C(mm) D(mm) E(mm) kg ET(mm) VCG(mm) hCG (mm) Ton
ZK27G-A1 2700/500 Ⅱ 310-1625 234 1100 1010 950 202 760 132 171 361 1-2.5
ZK27G-B1 2700/500 Ⅲ 330-1645 234 1470 1010 950 197 870 134 169 455 3-4.5
ZK27G=B2 2700/500 Ⅲ 310-1625 234 1100 1010 950 202 760 134 163 384 3-4.5
ZK27G-B3 2700/500 Ⅲ 320-1635 124 1100 1010 950 195 640 134 174 311 3-4.5
ZK27G-B6 2700/500 Ⅲ 320-1635 238 1260 1010 950 195 830 134 155 441 3

02

03

product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500
product-500-500

05

06

KE8JGCWQPI70NA8Q



Model Capacity/Load Center Mounting Class Opening Range Arm Height Arm Length Frame Width Hook Spread Arm Thickness Weight Effective Thickness Vertical Center of Gravity Horizontal Center of Gravity Available Forklift
  kg/mm   O(mm) A(mm) B(mm) C(mm) D(mm) E(mm) kg ET(mm) VCG(mm) hCG (mm) Ton
ZK27G-A1 2700/500 Ⅱ 310-1625 234 1100 1010 950 202 760 132 171 361 1-2.5
ZK27G-B1 2700/500 Ⅲ 330-1645 234 1470 1010 950 197 870 134 169 455 3-4.5
ZK27G=B2 2700/500 Ⅲ 310-1625 234 1100 1010 950 202 760 134 163 384 3-4.5
ZK27G-B3 2700/500 Ⅲ 320-1635 124 1100 1010 950 195 640 134 174 311 3-4.5
ZK27G-B6 2700/500 Ⅲ 320-1635 238 1260 1010 950 195 830 134 155 441 3
