Products Description
The Forklift Rotary Fork Clamp is an excellent solution for forklifts that are expected to handle a variety of loads. This attachment enables the driver to clamp or support difficult items and increases the fork's ability to reach beyond the truck bed, effectively handling wide loads. Sideshift models have the feature to laterally position both forks or the entire load for more accurate placement.
Adding a rotator can take fork clamps to another level of functionality by adding the benefit of turning and tipping. They can be used with a wide variety of loads from pallets to bins and containers. The ability to lift, clamp, turn or tip almost anything without stopping and getting out of the cab makes this a fast, safe and versatile multi-function attachment.
The rotary fork-lift tongs provide flexibility and versatility for material handling operations in a warehouse or manufacturing facility.
1. Increased Maneuverability: Rotating fork attachments enable operators to rotate the forks up to 360 degrees, providing greater maneuverability in tight spaces. This allows for better turning radius and reduces the likelihood of accidents or damage to nearby equipment or products.
2. Improved Efficiency: With rotating fork attachments, operators can adjust the angle and position of the forks to pick up and move loads without repositioning the entire forklift. This saves time and increases efficiency in material handling operations.
3. Versatility: Rotating fork attachments are designed to handle a wide variety of loads, including drums, crates, barrels and other oddly shaped objects. The ability to rotate the forks means that the operator can easily align the tines with the load, providing better stability and security during transportation.
4. Safety: Rotating fork attachments can help reduce the risk of injuries in the workplace. When loading and unloading materials, the operator can use the rotating feature to avoid awkward body movements and unnecessary strain on the back and shoulders.



| Model | Capacity/Load Center | Mounting Class | Opening Range | Arm Height | Arm Length | Frame Width | Hook Spread | Arm Thickness | Weight | Effective Thickness | Vertical Center of Gravity | Horizontal Center of Gravity | Available Forklift |
| kg/mm | O(mm) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | kg | ET(mm) | VCG(mm) | HCG(mm) | Ton | ||
| ZX14J-A1 | 1400/700 | Ⅱ | 560-1940 | 1200 | 1420 | 1040 | 825 | 90 | 875 | 117 | 371 | 504 | 2-2.5 |
| ZX14J-A2 | 1400/700 | Ⅱ | 760-2140 | 1200 | 1420 | 1040 | 825 | 90 | 890 | 117 | 369 | 497 | 2-2.5 |
| ZX14J-A3 | 1400/700 | Ⅱ | 590-1970 | 1200 | 1480 | 1040 | 825 | 90 | 900 | 117 | 369 | 534 | 2-2.5 |
| ZX12J-A1 | 1200/600 | Ⅱ | 400-1570 | 1200 | 1220 | 1040 | 825 | 90 | 785 | 117 | 368 | 429 | 2-2.5 |
| ZX14J-A4 | 1400/600 | Ⅱ | 565-1945 | 1200 | 1220 | 1040 | 825 | 90 | 800 | 117 | 367 | 424 | 2-2.5 |
| ZX14J-B1 | 1400/600 | Ⅲ | 595-1975 | 1200 | 1220 | 1040 | 1025 | 90 | 800 | 117 | 367 | 424 | 3-4.5 |
| ZX12D-A1 | 1200/600 | Ⅱ | 400-1570 | 1200 | 1220 | 1040 | 825 | 90 | 765 | 117 | 368 | 429 | 2-2.5 |
| ZX14D-A1 | 1360/700 | Ⅱ | 560-1940 | 1200 | 1420 | 1040 | 825 | 90 | 855 | 117 | 371 | 504 | 2-2.5 |
| ZX14D-A2 | 1360/700 | Ⅱ | 760-2140 | 1200 | 1420 | 1040 | 825 | 90 | 870 | 117 | 369 | 497 | 2-2.5 |
| ZX14D-A3 | 1360/700 | Ⅱ | 565-1945 | 1200 | 1220 | 1040 | 825 | 90 | 780 | 117 | 367 | 424 | 2-2.5 |
| ZX14D-A4 | 1360/700 | Ⅱ | 565-1945 | 1200 | 1220 | 1040 | 825 | 90 | 715 | 117 | 352 | 396 | 2-2.5 |
| ZX14D-B2 | 1360/700 | Ⅲ | 560-1920 | 1200 | 1420 | 1040 | 825 | 90 | 740 | 117 | 345 | 384 | 3-4.5 |
| ZX14D-B3 | 1360/700 | Ⅲ | 560-1940 | 1200 | 1420 | 1040 | 825 | 90 | 880 | 117 | 367 | 506 | 3-4.5 |
| ZX14D-B4 | 1360/700 | Ⅲ | 520-2400 | 1200 | 1480 | 1600 | 970 | 90 | 970 | 117 | 365 | 505 | 3-4.5 |
| ZX14D-B5 | 1360/700 | Ⅲ | 500-2100 | 1200 | 1480 | 1400 | 960 | 90 | 935 | 117 | 368 | 512 | 3-4.5 |
Forklift trucks need to add two groups of additional oil circuit





We should strive to achieve the effective integration of resources in the world with our own creation and action, and provide customers with higher quality Forklift Rotary Fork Clamp and overall technical solutions. Since its establishment, our company has been highly praised by many partners and established long-term cooperative relations. We are willing to build long-term, friendly and mutually beneficial cooperation with you. We are committed to becoming a strategic enterprise with industry leadership and achieving sustainable and solid growth.
Together with our customers and partners, we are constantly listening, seeking innovation and acquiring new ideas for Forklift Rotary Fork Clamp solutions. We hope our employees will form a work concept of love and dedication, and provide a stage for them to show their talents. We have repeatedly refined and sorted out our corporate culture in conjunction with our development strategy.

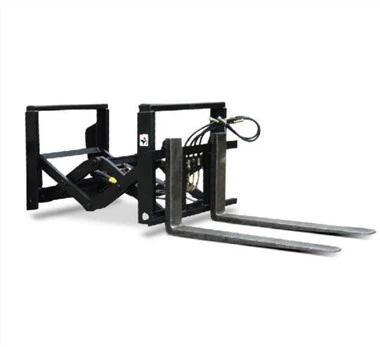

Hot Tags: forklift rotary fork clamp, China forklift rotary fork clamp manufacturers, suppliers, Forklift Front Telescopic Fork, Forklift Rotating Bucket Clamp, Forklift Attachment Brick Clamp, Forklift Rubber Sponge Clamp, Forklift Bucket Clamp, Forklift Bar Arm Attachments
