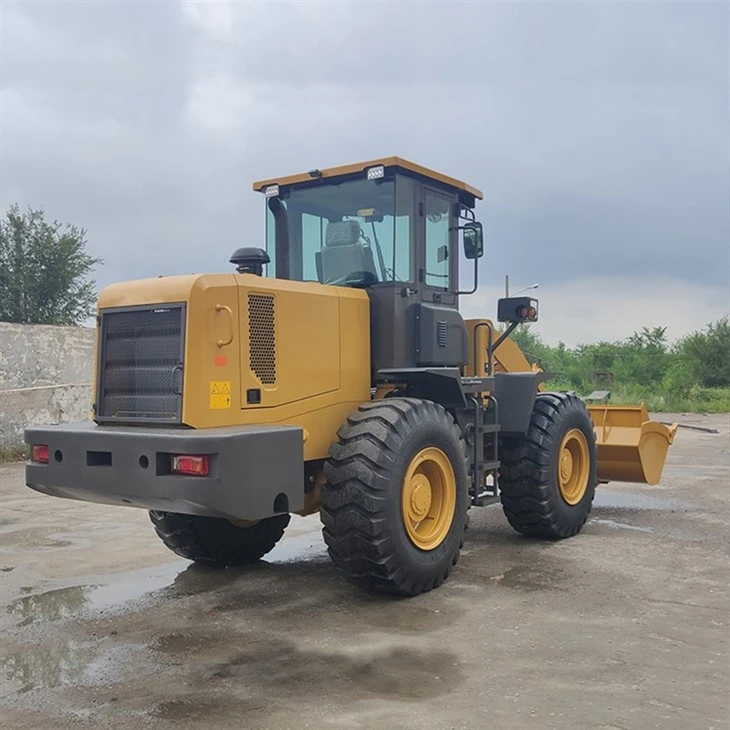

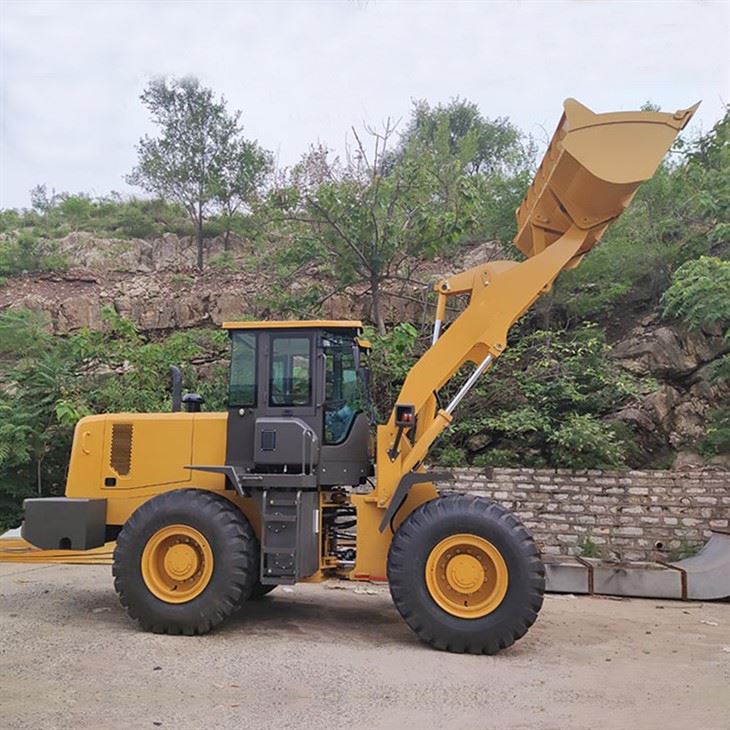

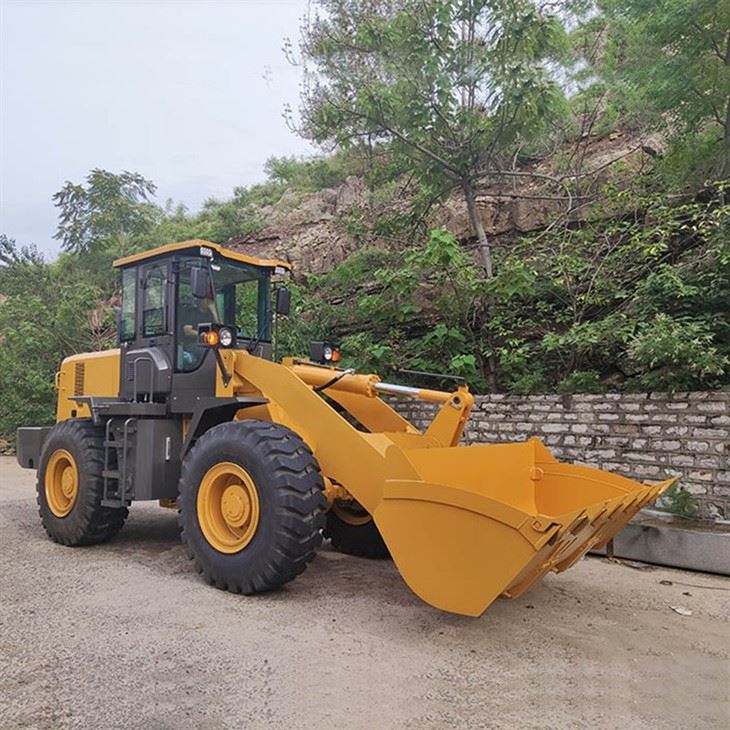

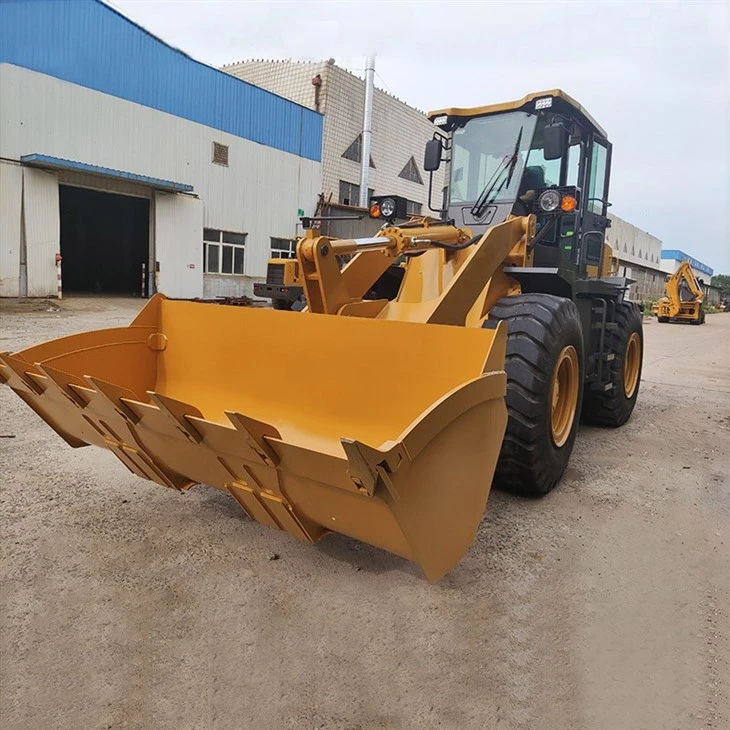

Ton's front-end wheel loader is equipped with an upgraded cabin, Eaton steering gear and priority valve, 20.5-25-25 Aeolus tires, and powerful engine performance and can easily cope with harsh working conditions.
Load Capacity: 4000 kg
Operating Weight: 11000 kg
Bucket Capacity: 2 m³
Full hydraulic steering system, power shift transmission, easier operation. The bucket can be automatically leveled to optimize the working device and improve production efficiency.
Newly designed cab, comfortable operating environment, optional air conditioning, and suspension seat.
Various accessory working devices can be provided, such as wood grabber, pipe fork, grass fork, stone bucket, snow knife, pallet fork, etc., to meet different needs.
Product characteristics
High reliability and productivity. Using a Weichai or Cummins engine, the power is strong and reliable. Torque converter and countershaft drive gearbox, assembled separately for higher reliability and easier maintenance.
Ergonomically designed cabins with luxurious Grahame engineering seats, excellent visibility, intuitive controls, and safety features make extended work periods comfortable and secure.
NST Wheel Loader FAQ
Q: What is the LTMG payment term for the wheel loader machine?
A: T/T, L/C, O/A
Q: Can we provide OEM service?
A: We can provide customized products according to customers' requirements; both OEM and ODM are acceptable.
Q: How about our delivery time?
A: Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q: Is the small loader easy to maintain?
A: Yes, we understand the value of your time. Our mini wheel excavator is designed for hassle-free maintenance, as it comes with easily accessible components and a user-friendly interface, ensuring quick and efficient servicing.
Q: What is the LTMG payment term for the wheel loader machine?
A: T/T, L/C, O/A
Q: Can we provide OEM service?
A: We can provide customized products according to customers' requirements; both OEM and ODM are acceptable.
Q: How about our delivery time?
A: Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
Q: Is the small loader easy to maintain?
A: Yes, we understand the value of your time. Our mini wheel excavator is designed for hassle-free maintenance, as it comes with easily accessible components and a user-friendly interface, ensuring quick and efficient servicing.
QUALITY AND RELIABILITY BUILT IN.
This wheel loader benefits from a strong chassis and the best possible weight distribution; this allows for optimal absorption of external forces.
A strong heavy-duty center joint that oscillates through ±40°.
Recessed rear lights are protected within the solid counterweight casting.
Hydraulic hoses are well protected and positioned away from all pinching areas.
State-of-the-art manufacturing processes using the finest components.
4 Ton Front End Wheel Loader Parameter
| Performance | rated loading | 4000kg |
| overall weight | 11,000 kg | |
| rated bucket capacity | 2m³ | |
| maximum tractive force | 105KN | |
| maximum breakout force | 110KN | |
| maximum gradeability | 30ºC | |
| maximum dump height | 3200mm | |
| maximum dump reach | 1100mm | |
| overall dimension (L×W×H) | 7230*2520*3250mm | |
| minimum turning radius | 6400mm | |
| Engine | model | Weichai/Cummins |
| type | Inline water-cooled, four-stroke | |
| rated power | 129 kW | |
| maximum torque | 500 N·m | |
| min fuel-consumption ratio | ≤210 g/kWh | |
| Transmission system | torque converter | YJ315 |
| gearbox mode | Power shift normally engaged straight gear | |
| gear shift | 4 forward shifts, 2 reverse shift | |
| maximum speed | 40km/h | |
| Drive axles | main reducing mode | Bevel gear grade reduction |
| decelerating mode | Bevel gear grade reduction | |
| wheelbase (mm) | 2750mm | |
| wheel tread | 1850mm | |
| ground clearance | 400mm | |
| Hydraulic system | system working pressure | 16.5 MPa |
| boom lifting time | 4.83s | |
| total time | 9.15s±0.5s | |
| fuel tank capacity | 130L | |
| function of levelling automatically | yes | |
| Brake system | service brake | air-assist disc brake on 4 wheels |
| Tyre | type specification | 20.5-25 |
With technological innovation, our product configuration and parameters will continue to change without notice;
