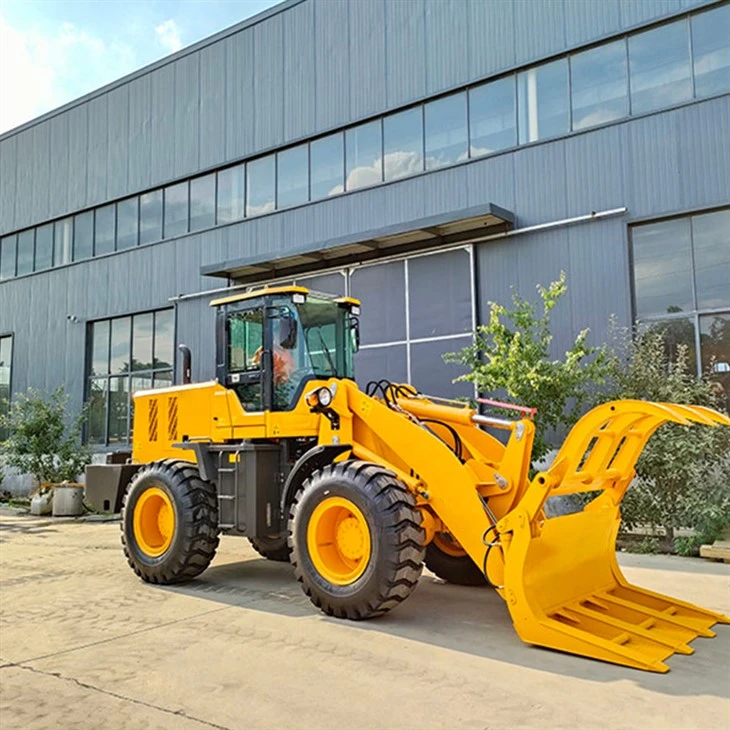

2.5 Ton Payloader With Log Grappler Attachment
The payloader is equipped with a powerful Yunnei engine. Thickened forward-leaning frame, strong body. Can be equipped with different attachment
Load Capacity: 2500 kg
Operating Weight: 6400 kg
Bucket Capacity: 1.3 m³
ODM/OEM: SUPPORT
1. High reliability and productivity. It adopts the Weichai Deutz engine, which is powerful and reliable. Higher reliability and easier maintenance.
2. Full hydraulic steering system, power shift gearbox, easier to operate. The bucket can be automatically leveled to optimize the work equipment and increase productivity.
3. Comfortable operating environment, newly designed cab, optional air conditioner.
4. A variety of attachment working devices are available, such as wood grippers, grass grippers, hydraulic
Towing forks, hydraulic quick change, four-in-one buckets, etc. meet different needs.
3-Ton Wheel Loader Parameters
|
1. Multifunctional steering wheel, flexible steering and comfortable operation 2.15 m³ large-capacity bucket, fast working speed and higher efficiency 3. Durable hydraulic components, the front frame adopts durable hydraulic control brand, and the operation is more sensitive 4. Equipped with Tsingtao tires, anti-slip and wear-resistant, and can be used for a longer period of time 5. A variety of attachment working devices are available, such as wood grippers, grass grippers, hydraulic towing forks, hydraulic quick hitches, 4-in-1 buckets, etc., to meet different needs. 2-Ton Payloader Parameter
With technological innovation, our product configuration and parameters will continue to change without notice; if there is any doubt, the specific confirmation of our international trade sales shall prevail; |
PRODUCTIVE PERFORMANCE.
It's Tier 4 Final engine provides high torque at low revs for excellent fuel economy. Dimensions are compact for a tight turn radius.
A variable-speed engine crank-driven cooling fan maintains optimum fan speed for all requirements without using any excess engine power.
Several axle options, including open diffs for hard ground and limited-slip diffs for soft muddy terrain.
High-speed option providing top speeds of 30 km/h.
The hydrostatic drive makes this model very easy to operate.
Certificate
| Model | NST925 |
| Bucket capacity | 1.3m³ |
| Rated load | 2500 kg |
| Overall dimension | 6600*2100*2950mm |
| Operating weight | 6400 kg |
| Max. dumping height | 3600 mm |
| Max. dumping distance | 1000mmY |
| Engine | unnie |
| Cylinder number | 6-cylinder |
| Rated power | 92 Kw |
| Steering type | Full-hydraulic, articulated |
| Torque converter type | Automatic, hydraulic converter |
| Gear shift | 2 forward, 2 reverse |
| Max speed | 25 km/h |
| Axle | 4WD, heavy hub reduction |
| Tyre size | 16/70-24 |
| Service brake | Gas cap, oil disc brake on 4 wheels |
| Parking brake | Hand-operated caliper disc |
| Operating type | Mechanical single joystick |
| Optional operating type | Pilot control |
| Optional configuration | Air conditioner, rearview camera, etc. |
| Optional attachment | Quick hitch, fork, log grapple etc. |
