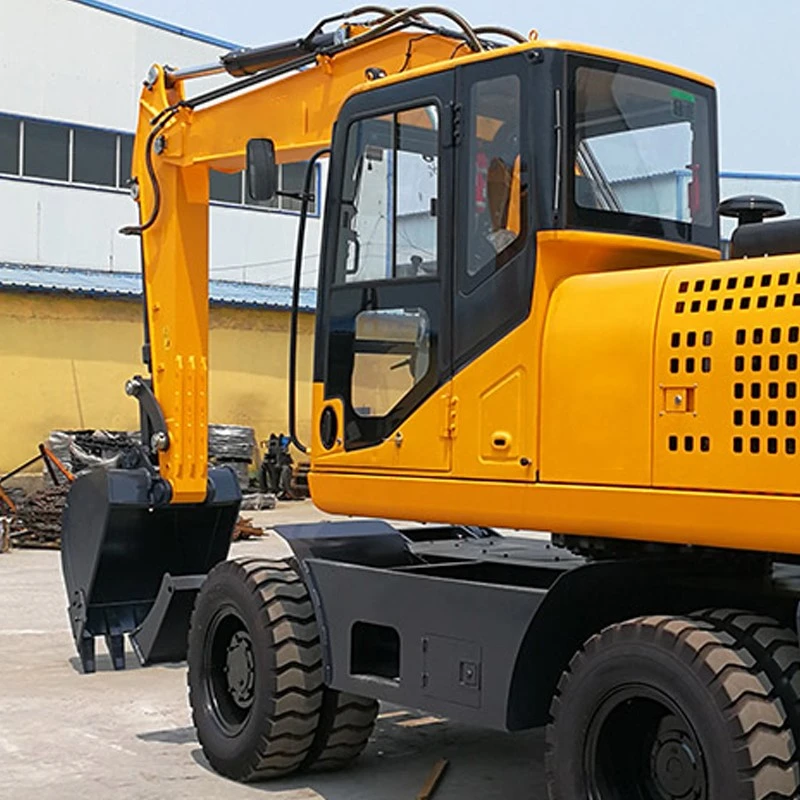

Heavy duty 15ton Hydraulic Wheel Excavator
The 15 ton hydraulic wheel excavator is used for earthwork excavation, loading, leveling, slope trimming, lifting, crushing, demolition, and ditch excavation. In addition, it can work in mining or harsh working conditions. It has the following characteristics: low production cost, low investment, and strong outdoor operation function.
15 ton Wheel Excavator Features
1. Adopting advanced constant power variable plunger pump.
2. Adopting wet multi disc brakes with buffering control, smooth operation, and braking functions
3.Pure imported components from South Korea are used, and the working curve of the valve stem matches the hydraulic valve.
4.Engineering cylinder, American Parker sealing ring, equipped with buffer device.
5. Use 16MN steel plate and quench and temper each bushin
Operating Weight :15000kg
Bucket Capacity :0.6m³
view more
view more
view more
view more
Powerful, efficient and reliable CEV-IV complaint Commins engine with common rail and after-treatment (DOC+SCR) system
A waste gate turbocharger provides increased performance at low engine speed for improved cycles times and higher tractive forces
15 Ton Wheel Excavator Technical Parameters
| Performance Parameters | Unit | NST150 |
| Operating Weight | Kg | 15000 |
| Engine Model | YUCHAI YC4D115 | |
| Rated Power | Kw | 85KW/2200RPM |
| Bucket Capacity | m³ | 0.6 |
| Max Digging Force | Kn | 91 |
| Swing Speed | rpm | 0-12 |
| Traveling Speed | km/h | 0-28 |
| Gradeability | ° | 25 |
| Operating Range | ||
| Max. Digging Radius | mm | 8000 |
| Max. Digging Depth | mm | 4750 |
| Max. Digging Height | mm | 8930 |
| Max. Dumping Height | mm | 6520 |
| Tail Swing Radius | mm | 2420 |
| Max. Blade Dozer Cutting Distance | mm | 100 |
| Max. Blade Dozer Lifting Distance | mm | 400 |
| Overall Dimensions | ||
| Overall Length | mm | 7520 |
| Overall Width | mm | 2570 |
| Overall Height | mm | 3425 |
| Mini.Ground Clearance | mm | 350 |
| Undercarriage width | mm | 2570 |
With technological innovation, our product configuration and parameters will continue to change without notice;
