2 Ton 4WD Rough Terrain Diesel Forklift For Sale

who choose us?



Simple appearance, generous and beautiful, strict environmental protection design;
2) The design of high-top large-diameter channel intake system can effectively exert engine performance and improve service life;
3) Wide vision enhanced frame design, so that the driver's vision is more open, durable, high reliability;
4) Special enhanced high-speed transmission design, making the power more powerful, faster running speed, higher working efficiency;
5) Reliable special instrument, friendly man-machine interface, easy for the driver to accurately control the vehicle status;
6) Integral drawing machine cover, beautiful appearance, high strength;
7) Equipped with wide base tires, tire life is improved, durable;
8) The new steering wheel adjustment mechanism improves the operating comfort and adjustment reliability.

one-stop solution

professional team

high quality





1, Standard lifting height: 3000mm with wide view mast
2, Optional 2-stage 3500mm mast, 2-stage 4000mm mast, 3-stage 4500mm mast, 3-stage 5000mm mast, 3-stage 6000mm mast.
3, Load center: 600mm
4, Equipped with Xinchai/Quanchai engine or imported engine
5, With more power and low emission engine,stronger loading capacity gradeability;With load sensing hydraulic system,quicker lifting speed,higher working effciency.
6, Strenthen and Optimize core structure parts,strength improved greatly;with intelligent gear shifting technology to avoid 2nd-gear start,improved transmission life.
7, Intelligent gear shifting system, ease of operation Standard half surrounded seat,safety and comfort.
8, Wider intermal space, more reasonable parts layout and 800hood opening angle make maintenance easy.

Nuo Shington

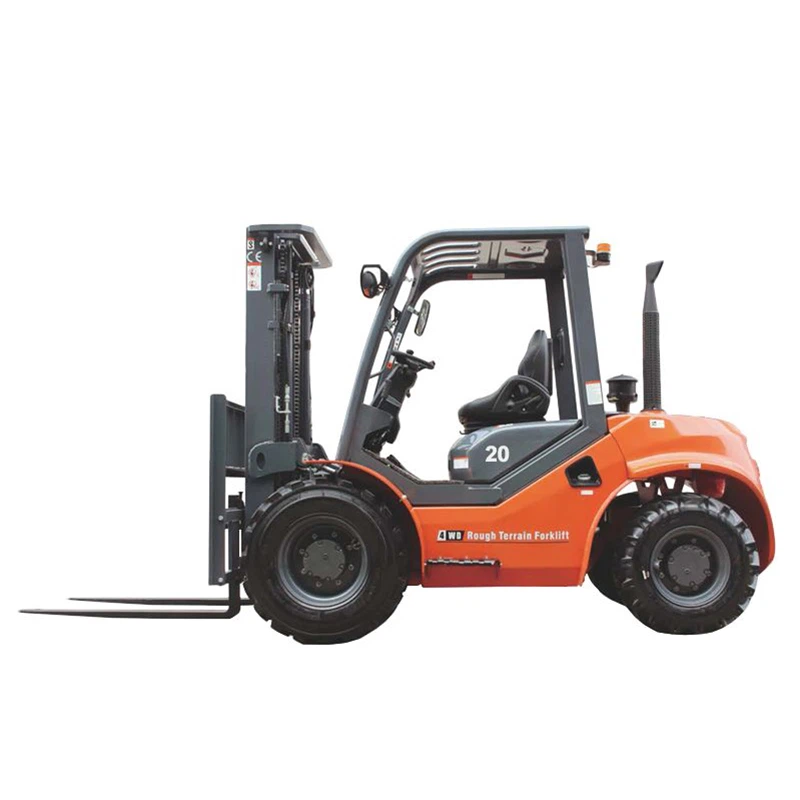

Product display

• Model:

  FD20F

• Load capacity:

  2000kg

• Lift Height:

  3000-6000mm

• Fork Length:

  1220-2200

• Load center:

  500mm

• Engine:

  XINCHAI/ISUZU/MITSUBISHI

Nuo Shington

Product advantages

•

  Rough terrain diesel forklift truck is specially designed for the harsh outdoor environment, the vehicle center of gravity is low, excellent stability, equipped with a two-stage air filter, with superior air purification capacity

•

  Large size deep pattern off-road vacuum tire with excellent off-road capability and shock absorption.

•

  Wider mast design, wider driving field of view. The suspension seat reduces driving fatigue.

•

  Power powerful to meet Euro 5 and EPA emission requirements

•

Nuo Shington

physical display

•
•
•

Standard Equipment >>>

1. Hour meter 2.Oil pressure alarm 3.Hydraulic filter 4.Lamp guard 5.Charge director 6.Back-up buzzer 7.Hydraulic steering 8.Standard fork 9.Drawbar pin 10.Horn 11.Back-up alarm 12.Rear working light 13.2-stage mast 14.Awning 15.Standard seat

Option >>>

1. Cabin 2. High exhaust 3.Suspend seat 4. Fork extension 5.Solid tire 6.Windshild 7. Heater 8. Wider fork carriage 9.Anti-fire muffer 10.Customer color 11.Lifting hook 12.Carpet probe 13.Sider shifter 14.JibProduct Parameter

1	Model		FB16	FB18	FB20	FB25	FB30	FB35
2	Drive mode		Electric	Electric	Electric	Electric	Electric	Electric
3	Type of operation		Seated	Seated	Seated	Seated	Seated	Seated
4	Load capacity/rated load	kg	1600	1800	2000	2500	3000	3500
5	Load centre distance	mm	500	500	500	500	500	500
6	Load distance,centre of drive axle to fork	mm	381	381	463	468	468	468
7	Wheel base	mm	1360	1360	1500	1500	1650	1650
8	Service weight incl. battery(see line 43)	kg	3100	3250	4010	4260	4850	5340
9	Axle loading ,laden front/rear	kg	4160/540	4380/670	5310/700	6020/750	7050/800	7770/1070
10	Axle loading,unladen front/rear	kg	1500/1600	1550/1700	2000/2010	2000/2260	2220/2630	2210/3130
11	Tires Type		pneumatic	pneumatic	pneumatic	pneumatic	pneumatic	Solid tyre
12	Tires size,front		6.50-10-10PR	6.50-10-10PR	23x9-10-18PR	23x9-10-18PR	23x9-10-18PR	23x10-12
13	Tires size,rear		5.00-8-10PR	5.00-8-10PR	18x7-8-14PR	18x7-8-14PR	18x7-8-14PR	18x7-8
14	Wheels,number front/rear(×=driven wheels)		2/2	2/2	2/2	2/2	2/2	2/2
15	Track width,front	mm	970	970	1040	1040	1040	1058
16	Track width,rear	mm	920	920	950	950	960	960
17	Mast/fork carriage tilt forward/backward	°	6/10	6/10	6/10	6/10	6/10	6/10
18	lowered mast height	mm	2000	2000	2045	2045	2045	2045
19	Free lift	mm	129	129	120	120	140	140
20	Lift height	mm	3000	3000	3000	3000	3000	3000
21	Extended mast height	mm	3983	3983	3977	3977	3977	3977
22	Overhead load guardheight	mm	2195	2195	2190	2190	2205	2205
23	Seat height/standing height	mm	1110	1110	1100	1100	1100	1100
24	Coupling height	mm	290	290	295	295	295	295
25	Overall length	mm	2981	2981	3393	3398	3605	3645
26	Length to face of forks	mm	2061	2061	2323	2328	2535	2575
27	Overall width	mm	1150	1150	1260	1260	1260	12290
28	Fork dimensions	mm	35x100x920	35x100x920	40x120x1070	40x120x1070	45x125x1070	50x125x1070
29	Fork carriage width	mm	1040	1040	1040	1040	1100	1100
30	Ground clearance ,laden,under mast	mm	100	100	110	110	110	110
31	Ground clearance,centre of wheelbase	mm	110	110	120	120	120	120
32	Aisle width for pallets 1000×1200 crossways	mm	3161	3161	3583	3588	3985	4055
33	Aisle width for pallets 800×1200 lengthways	mm	3361	3361	3713	3718	4115	4185
34	Turning radius	mm	1820	1820	2050	2050	2230	2300
35	Travel speed,laden/unladen	km/h	13/15	13/15	13/14	13/14	13/14	12/13
36	Lift speed,laden/unladen	m/s	0.32/0.42	0.30/0.42	0.31/0.40	0.30/0.39	0.31/0.40	0.30/0.39
37	lowering speed,laden/unladen	m/s	<0.6	<0.6	<0.6	<0.6	<0.6	<0.6
38	Service brake		Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic	Hydraulic
39	Drive motor rating	kw	6.8	6.8	11	11	15	15
40	Lift motor rating	kw	8.6	8.6	8.6	8.6	10	10
41	Battery standard		DIN	DIN	BS	BS	DIN	DIN
42	Battery voltage,nominal capacity	V/Ah	48/400/450/500	48/450/500	48/600/630/700/770	48/600/630/700/770	80/500/560	80/500/560
43	Battery weight	kg	695	695	947	947	1350	1350
44	Battery dimensions I/w/h	mm	980x398x760	980x398x760	980x538x760	980x538x760	1016x688x760	1016x688x760
45	Type of drive control		AC	AC	AC	AC	AC	AC
46	Operating pressure for attachments	Mpa	17.5	17.5	17.5	17.5	17.5	17.5
47	Oil volume for attachments	l/min	36	36	36	36	36	36
48	Sound level at driver's ear according to EN 12 053	dB(A)	73	73	72	73	74	75



About us

market/market scope

Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.

Certificate/Our honor

In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.

•
•
•
•

logistics/payment service

Payment

Online trade assurance order, all is up to you.

More payment terms could be provided (T/T,PAYPAL, WESTERN UNION)

 After sales service

NUOXTON always treat after-sale service as important as sale.
Nowadays we have been sell more than 100 countries.
All the products of mingyu supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product's quality certificate.

Service in Philippines,Indonesia, Thailand, Vietnam, Brazil, Mexico, Russia , Chile,German, France,England, Ireland, New Zealand, Romania,etc 100+ Countries at Present.

FAQ
Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.

Q: What is the payment term?
A: Normally we accept, TT, LC at sight.

Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange, and Green to choose. We can customize the color according to your color number.

Q: Can I see the production progress after order?
A: Yes, during production, we can have video call and we could take photos/videos for your reference.

Q:What certification do you have?
A:Our company has passed ISO 9001:2008 and all of the product have CE certification.

Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 7 working days. We have professional after sales department to support for you at any time.

Q:How can I get the best price?
A:Price is the most concerning problem of every customer,if you want to know the price.We need to know your detailed requirements.

Hot Tags: 2 ton 4wd rough terrain diesel forklift for sale, China 2 ton 4wd rough terrain diesel forklift for sale manufacturers, suppliers
