Two-year warranty
Except for wearing parts, reissue parts within the warranty【Support the following courier reissue 】

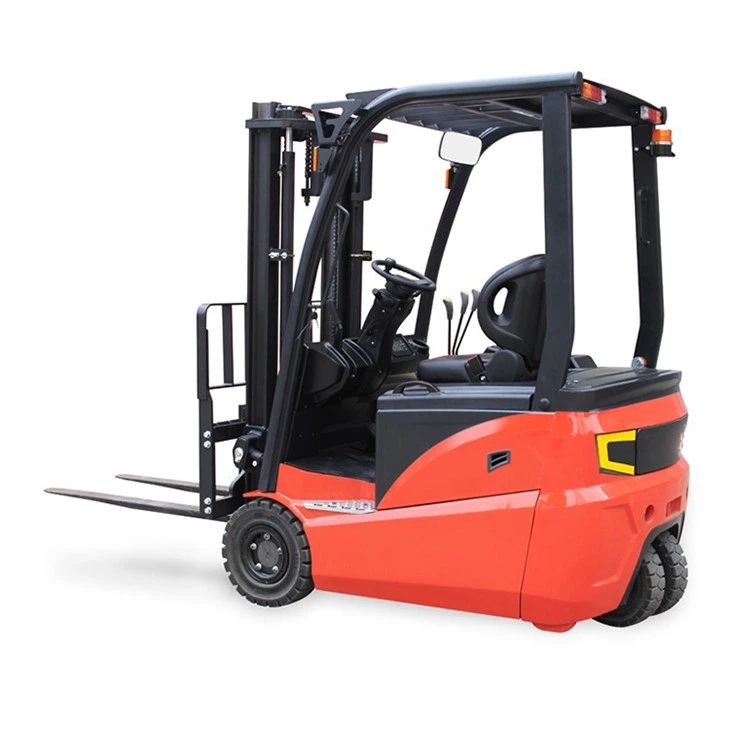

The 1.6 ton front drive three-wheel electric forklift is a great addition to any warehouse or distribution centre. This forklift is ideal for moving pallets or other materials in narrow aisles and tight spaces.
The forklift is also equipped with safety features to ensure the safety of the operator and nearby workers. It features a high-visibility mast and rear view camera and can be easily lifted and moved. The forklift also comes with an ergonomic seat and adjustable controls for comfortable operation.
Service capabilities
Easy-to-maintain controller and steering potentiometer.
Maintenance-free wet disc brakes.
The lifting drive AC motor has no carbon brushes and is maintenance-free, greatly reducing maintenance costs. And all use external encoders, making maintenance more convenient.
BDI has a comprehensive discharge protection system.
Brake oil cup mounted on dash for easy checking and adding brakes
The electric control is installed in the counterweight to facilitate heat dissipation and subsequent maintenance
After professional adjustment, the walking and lifting control is accurate and efficient with regenerative braking, ramp braking and fault self-diagnosis functions.
Parameter Table
|
Model |
|
FB3D16N |
FB3D18N |
FB3D20N |
|
Drive mode |
|
Electric |
Electric |
Electric |
|
Type of operation |
|
Seated |
Seated |
Seated |
|
Load capacity/rated load |
kg |
1600 |
1800 |
2000 |
|
Load centre distance |
mm |
500 |
500 |
500 |
|
Load distance,centre of drive axle to fork |
mm |
372 |
377 |
377 |
|
Wheel base |
mm |
1360 |
1360 |
1490 |
|
Service weight incl. battery(see line 43) |
kg |
3100 |
3260 |
3420 |
|
Axle loading ,laden front/rear |
kg |
4200/500 |
4550/510 |
4880/540 |
|
Axle loading,unladen front/rear |
kg |
1490/1610 |
1610/1650 |
1670/1750 |
|
Tires Type |
|
Solid tyre |
Solid tyre |
Solid tyre |
|
Tires size,front |
|
18x7-8 |
18x7-8 |
200x50-10 |
|
Tires size,rear |
|
15x4-8 |
15x4-8 |
15x4-8 |
|
Wheels,number front/rear(×=driven wheels) |
|
2x/2 |
2x/2 |
2x/2 |
|
Track width,front |
mm |
960 |
960 |
984 |
|
Track width,rear |
mm |
180 |
180 |
180 |
|
Mast/fork carriage tilt forward/backward |
deg |
5/7 |
5/7 |
5/7 |
|
lowered mast height |
mm |
2008 |
2008 |
2008 |
|
Free lift |
mm |
125 |
125 |
125 |
|
Lift height |
mm |
3000 |
3000 |
3000 |
|
Extended mast height |
mm |
3981 |
3981 |
3981 |
|
Overhead load guardheight |
mm |
2075 |
2075 |
2075 |
|
Seat height/standing height |
mm |
1030 |
1030 |
1030 |
|
Coupling height |
mm |
465 |
465 |
465 |
|
Overall length |
mm |
2845 |
3000 |
3130 |
|
Length to face of forks |
mm |
1925 |
1930 |
2060 |
|
Overall width |
mm |
1135 |
1135 |
1135 |
|
Fork dimensions |
mm |
35x100x920 |
40x120x1070 |
40x120x1070 |
|
Fork carriage width |
mm |
1040 |
1040 |
1040 |
|
Ground clearance ,laden,under mast |
mm |
123 |
123 |
123 |
|
Ground clearance,centre of wheelbase |
mm |
105 |
105 |
105 |
|
Aisle width for pallets 1000×1200 crossways |
mm |
3122 |
3127 |
3257 |
|
Aisle width for pallets 800×1200 lengthways |
mm |
3322 |
3327 |
3357 |
|
Turning radius |
mm |
1550 |
1550 |
1680 |
|
Travel speed,laden/unladen |
km/h |
14/15 |
14/15 |
13/15 |
|
Lift speed,laden/unladen |
m/s |
0.32/0.42 |
0.30/0.42 |
0.30/0.42 |
|
lowering speed,laden/unladen |
m/s |
<600 |
<600 |
<600 |
|
Service brake |
|
Hydraulic |
Hydraulic |
Hydraulic |
|
Drive motor rating |
kw |
4.5x2 |
4.5x2 |
4.5x2 |
|
Lift motor rating |
kw |
8.6 |
8.6 |
8.6 |
|
Battery standard |
|
DIN |
DIN |
DIN |
|
Battery voltage,nominal capacity |
V/Ah |
48/455/490/560 |
48/455/490/560 |
48/560/630 |
|
Battery weight |
kg |
800 |
800 |
950 |
|
Battery dimensions I/w/h |
mm |
980x538x760 |
980x538x760 |
980x668x670 |
|
Type of drive control |
|
AC |
AC |
AC |
|
Operating pressure for attachments |
Mpa |
17.5 |
17.5 |
17.5 |
|
Oil volume for attachments |
l/min |
36 |
36 |
36 |
|
Sound level at driver's ear according to EN 12 053 |
dB(A) |
73 |
73 |
73 |
Nuo Shington
physical display
Standard Equipment >>>
1. Hour meter 2.Oil pressure alarm 3.Hydraulic filter 4.Lamp guard 5.Charge director 6.Back-up buzzer 7.Hydraulic steering 8.Standard fork 9.Drawbar pin 10.Horn 11.Back-up alarm 12.Rear working light 13.2-stage mast 14.Awning 15.Standard seat
Option >>>
1. Cabin 2. High exhaust 3.Suspend seat 4. Fork extension 5.Solid tire 6.Windshild 7. Heater 8. Wider fork carriage 9.Anti-fire muffer 10.Customer color 11.Lifting hook 12.Carpet probe 13.Sider shifter 14.Jib
