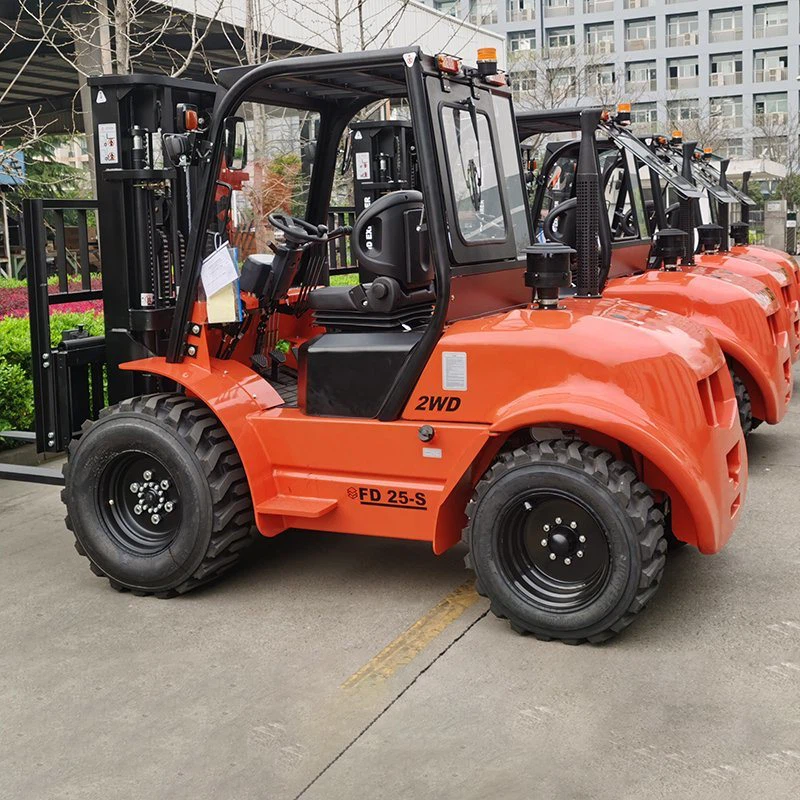

- Model:
FD25F
- Load capacity:
2500kg
- Lift Height:
3000-6000mm
- Fork Length:
1220-2200
- Load center:
500mm
- Engine:
XINCHAI/ISUZU/MITSUBISHI

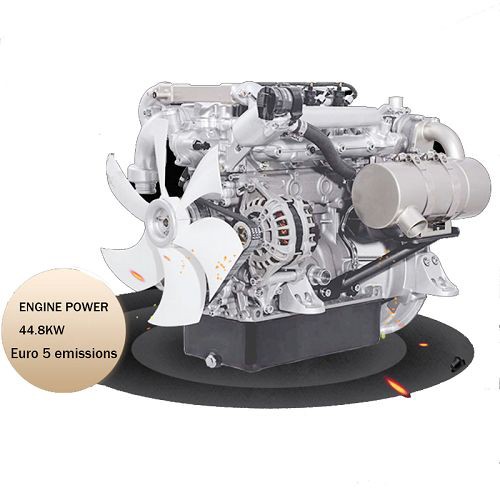

XINCHAI 3E22YG51
meets European Euro 5 emission standards and has an engine power of up to 44.8KW.
High-powered engines face rough terrain relentlessly
Optional accessories: side shifter, rotator, tilting fork, feed shovel, side shifter pitch fork, paper roll clamp, round pipe clamp, soft clamp.
Optional configuration: cab, heater, double air filter, additional fire extinguisher, front windshield, fan, purification muffler, fire extinguishing muffler, rear working light, rotating warning light, etc.
Large enterprise scale
wide application of technology
high-quality customized services
High quality
quick delivery for our globad istributors
advanced equipment
quick delivery for our globad istributors
professional team
quick delivery for our globad istributors
one-stop solution
quick delivery for our globad istributors
We are a manufacturer specializing
in the production of handling equipment.
We firmly follow the trend of international
modern industrial and logistics equipment
in the direction of convenience, intelligence,
energy saving and environmental protection,
and is determined to become a high-tech
enterprise in logistics handling,
and strive to become a leader
in logistics solutions.
Nuo Shington
Product display
Product Parameter
| 2 - 3.5 Ton 4WD Rough Terrain Forklift Parameter | |||||
| Characteristic | |||||
| Model | FD20-F | FD25-F | FD30-F | FD35-F | |
| Driving mode | Diesel | Diesel | Diesel | Diesel | |
| Rated Capacity | kg | 2000 | 2500 | 3000 | 3500 |
| Load Centre | mm | 500 | 500 | 500 | 500 |
| Service weight | kg | 4620 | 4800 | 5080 | 5080 |
| Tyre Type (Front/Rear) | Pneumatic | Pneumatic | Pneumatic | Pneumatic | |
| Wheel number X= drive wheel (Front/Rear) | 2X/2X | 2X/2X | 2X/2X | 2X/2X | |
| Tyre Size (Front) | 14-17.5-14PR | 14-17.5-14PR | 14-17.5-14PR | 14-17.5-14PR | |
| Tyre Size (Rear) | 10.0/75-15.3-12PR | 10.0/75-15.3-12PR | 10.0/75-15.3-12PR | 10.0/75-15.3-12PR | |
| Front Tread | mm | 1217 | 1217 | 1217 | 1217 |
| Rear Tread | mm | 1206 | 1206 | 1206 | 1206 |
| Wheelbase | mm | 1920 | 1920 | 1920 | 1920 |
| Fork Size (LxWxT) | mm | 1220x120x40 | 1220x120x40 | 1220x120x45 | 1220x120x45 |
| Mast Tilt Angle (F/R) | deg | 10/12 | 10/12 | 10/12 | 10/12 |
| Lift Height | mm | 3000 | 3000 | 3000 | 3000 |
| Mast Lowered Height | mm | 2235 | 2235 | 2265 | 2265 |
| Free Lift Height | mm | 160 | 160 | 165 | 165 |
| Mast Extended Helght | mm | 4224 | 4224 | 4342 | 4342 |
| Length to Face of Fork | mm | 3110 | 3110 | 3110 | 3110 |
| Overall Width | mm | 1560 | 1560 | 1560 | 1560 |
| Overhead Guard Height | mm | 2260 | 2260 | 2260 | 2260 |
| Front Overhang | mm | 580 | 580 | 580 | 580 |
| Rear Overhang | mm | 610 | 610 | 610 | 610 |
| Turning Radius (outside) | mm | 3200 | 3200 | 3200 | 3200 |
| Ground Clearance (Bottom of mast) | mm | 270 | 270 | 270 | 270 |
| Min.intersecting aisle | mm | 2780 | 2780 | 2780 | 2780 |
| Min.right angle stacking aisle width | mm | 5200 | 5200 | 5200 | 5200 |
| Max.Travel Speed (Full load/No load) | km/h | 21/22 | 21/22 | 20/21 | 20/21 |
| Lifting Speed (Full load/No load) | mm/s | 530/560 | 530/560 | 510/550 | 510/550 |
| Lowering Speed (Full load/No load) | mm/s | ≤600/≥300 | ≤600/≥300 | ≤600/≥300 | ≤600/≥300 |
| Max.Gradeability (Full load) | % | 50 | 50 | 50 | 50 |
| Engine Model | China Engine or Japan Engine | ||||
| Rated output | Kw/rpm | 36.8/2500 | 36.8/2500 | 36.8/2500 | 36.8/2500 |
| Rated torque | Nw/rpm | 186/1600-1800 | 186/1600-1800 | 186/1600-1800 | 186/1600-1800 |
| No.of Cylinder | 4 | 4 | 4 | 4 | |
| Bore x Stroke | mm | 98x105 | 98x105 | 98x105 | 98x105 |
| Displacement | L | 3.167 | 3.167 | 3.167 | 3.167 |
| Fuel Tank Capacity | L | 60 | 60 | 60 | 60 |
| Battery (Voltage/Capacity) | V/Ah | 12/80 | 12/80 | 12/80 | 12/80 |
| Transmission Type | hydraulic | hydraulic | hydraulic | hydraulic | |
| Operating Pressure | Mpa | 18 | 18 | 18 | 18 |
Nuo Shington
Product advantages
Rough terrain diesel forklift truck is specially designed for the harsh outdoor environment, the vehicle center of gravity is low, excellent stability, equipped with a two-stage air filter, with superior air purification capacity
Large size deep pattern off-road vacuum tire with excellent off-road capability and shock absorption.
Wider mast design, wider driving field of view. The suspension seat reduces driving fatigue.
Power powerful to meet Euro 5 and EPA emission requirements
Nuo Shington
physical display
Standard Equipment >>>
1. Hour meter 2.Oil pressure alarm 3.Hydraulic filter 4.Lamp guard 5.Charge director 6.Back-up buzzer 7.Hydraulic steering 8.Standard fork 9.Drawbar pin 10.Horn 11.Back-up alarm 12.Rear working light 13.2-stage mast 14.Awning 15.Standard seat
Option >>>
1. Cabin 2. High exhaust 3.Suspend seat 4. Fork extension 5.Solid tire 6.Windshild 7. Heater 8. Wider fork carriage 9.Anti-fire muffer 10.Customer color 11.Lifting hook 12.Carpet probe 13.Sider shifter 14.Jib
Nuo Shington
our service
OEM
One Stop Solution
24-hour service
Technical Guidance
Two-year warranty
Except for wearing parts, reissue parts within the warranty【Support the following courier reissue 】
Nuo Shington
About us
market/market scope
Our products are widely concerned and favored by domestic and foreign customers for their beautiful appearance, high-quality and comprehensive services, safe, reliable and cost-effective, and have been successfully exported to more than 100 countries and regions around the world.
Certificate/Our honor
In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.
logistics/payment service
Payment
Online trade assurance order, all is up to you.
More payment terms could be provided (T/T,PAYPAL, WESTERN UNION)
|
Model |
|
FD25-F |
|
Driving mode |
|
Diesel |
|
Rated Capacity |
kg |
2500 |
|
Load Centre |
mm |
500 |
|
Service weight |
kg |
4800 |
|
Tyre Type (Front/Rear) |
|
Pneumatic |
|
Wheel number X= drive wheel (Front/Rear) |
|
2X/2X |
|
Tyre Size (Front) |
|
14-17.5-14PR |
|
Tyre Size (Rear) |
|
10.0/75-15.3-12PR |
|
Front Tread |
mm |
1217 |
|
Rear Tread |
mm |
1206 |
|
Wheelbase |
mm |
1920 |
|
Fork Size (LxWxT) |
mm |
1220x120x40 |
|
Mast Tilt Angle (F/R) |
deg |
10/12 |
|
Lift Height |
mm |
3000 |
|
Mast Lowered Height |
mm |
2235 |
|
Free Lift Height |
mm |
160 |
|
Mast Extended Helght |
mm |
4224 |
|
Length to Face of Fork |
mm |
3110 |
|
Overall Width |
mm |
1560 |
|
Overhead Guard Height |
mm |
2260 |
|
Front Overhang |
mm |
580 |
|
Rear Overhang |
mm |
610 |
|
Turning Radius (outside) |
mm |
3200 |
|
Ground Clearance (Bottom of mast) |
mm |
270 |
|
Min.intersecting aisle |
mm |
2780 |
|
Min.right angle stacking aisle width |
mm |
5200 |
|
Max.Travel Speed (Full load/No load) |
km/h |
21/22 |
|
Lifting Speed (Full load/No load) |
mm/s |
530/560 |
|
Lowering Speed (Full load/No load) |
mm/s |
≤600/≥300 |
|
Max.Gradeability (Full load) |
% |
50 |
|
Engine Model |
|
China Engine Japan Engine |
|
Rated output |
Kw/rpm |
36.8/2500 |
|
Rated torque |
Nw/rpm |
186/1600-1800 |
|
No.of Cylinder |
|
4 |
|
Bore x Stroke |
mm |
98x105 |
|
Displacement |
L |
3.167 |
|
Fuel Tank Capacity |
L |
60 |
|
Battery (Voltage/Capacity) |
V/Ah |
12/80 |
|
Transmission Type |
|
hydraulic |
|
Operating Pressure |
Mpa |
18 |
