42 Ton Heavy Duty Large Capacity Forklift For Sale

Heavy Container Diesel Forklift Truck 42ton Harbor Large Capacity Lifting Handing Fork Lift For Sale

Engine:
Cummins and Weichai turbocharged diesel engines are used, which have strong power, energy saving and environmental protection, and meet the requirements of efficient operation.
Gearbox:
1. Adopt three-tooth power hydraulic transmission, combined working conditions with large traction, double variable system is more reliable.
2. Adopt twin-turbine torque converter, stepless transmission, single lever control transmission system, easy to operate.
Drive axle:
1. The front axle adopts heavy forklift drive axle, axle housing, wheel hub, bearing increase size, spiral bevel gear and wheel edge planetary wheel deceleration and torsion, steel axle housing support, large load capacity, long service life.
2. The rear axle adopts the transverse hydraulic cylinder steering mechanism, the steering axle is compact, and the transmission Angle can reach 70.5°, which is conducive to reducing the steering resistance, reducing tire wear, and improving the ride comfort during driving.
Hydraulic system:
1. Full hydraulic load sensing steering system, small turning radius of rear steering bridge, light and flexible steering.
2. The use of dual pump combined working hydraulic system, greatly reduce fuel consumption, energy consumption.
3. The hydraulic system is equipped with oil radiator and back pressure protection device to ensure the heat balance of the whole machine.

Frame, door frame:
1. The use of long wheelbase, box-shaped double beam frame can provide good rigidity and strength to ensure the high reliability of the forklift chassis.
2. The door frame is lowered by speed limiting valve and pressure selection valve to reduce the impact of hydraulic system, and the door frame can be lowered to the ground from the height when the engine is turned off.
3. The internal and external door frame adopts roller coordination and pulley labor-saving structure, which has long service life and high reliability.
Shelves:
1. Hydraulic distance fork, easy adjustment.
2 Cathcart high strength fork, higher strength, more wear-resistant, can double the life.
Tires:
The use of block-deepened heavy forklift tire, the rear steering axle can swing around the center, with good traction performance and passing performance.
Luxury cab:
1. Adjustable steering machine, airline seat, more comfortable sitting; Air handle pilot control, light and flexible operation, more comfortable sitting.
2. Luxury wide vision cab, with skylight, low noise, good sealing, easy to observe around the driver.
3. The use of domestic high-quality electrical components, maintenance-free battery, wire using flame retardant materials, reliable and durable work.

Nuo Shington

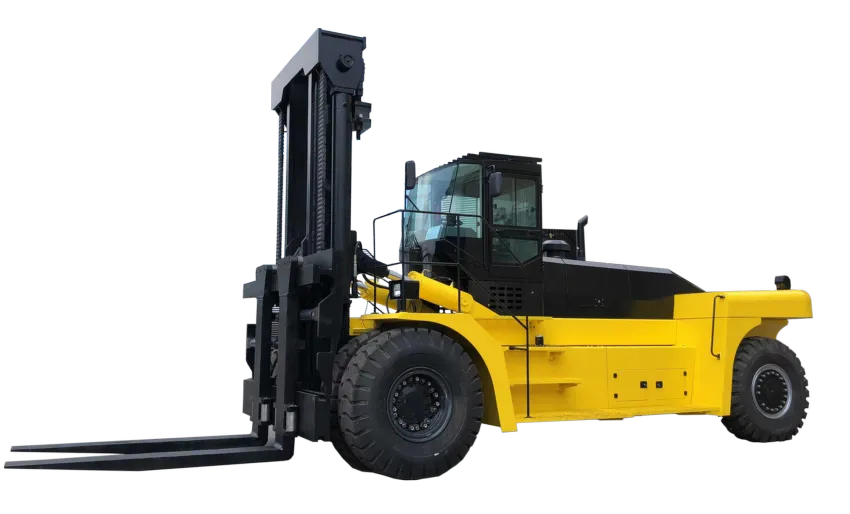

Product display

• Model:

  FD420

• Load capacity:

  42000kg

• Lift Height:

  3000-5000mm

• Fork Length:

  2600mm

• Load center:

  1225mm

• Engine:

  YUCHAI/ WEICHAI/ COMMINS

Nuo Shington

Product advantages

•

  Cummins and Weichai turbocharged diesel engines are used, which have strong power, energy saving and environmental protection, and meet the requirements of efficient operation.

  Using twin-turbine torque converter, stepless speed change and single lever control speed change system, the operation is easier.

•

  Front axle adopts heavy forklift drive axle, axle housing, wheel hub, bearing increase size, spiral bevel gear and wheel edge planetary wheel deceleration and torsion increase, steel axle housing support, large load capacity, long service life.

•

  Full hydraulic load sensing steering system, small turning radius of rear steering bridge, light and flexible steering. Add back oil radiator and back pressure protection device to ensure the heat balance of the whole machine.

•

  With a long wheelbase, box-shaped double beam frame, it can provide good rigidity and strength to ensure the high reliability of the forklift chassis. The internal and external door frame adopts the roller coordination and the labor-saving structure of the driving pulley, and the door frame has long service life and high reliability.

•

Nuo Shington

physical display

•
•
•

Standard Equipment >>>

1. Hour meter 2.Oil pressure alarm 3.Hydraulic filter 4.Lamp guard 5.Charge director 6.Back-up buzzer 7.Hydraulic steering 8.Standard fork 9.Drawbar pin 10.Horn 11.Back-up alarm 12.Rear working light 13.2-stage mast 14.Awning 15.Standard seat

Option >>>

1. Cabin 2. High exhaust 3.Suspend seat 4. Fork extension 5.Solid tire 6.Windshild 7. Heater 8. Wider fork carriage 9.Anti-fire muffer 10.Customer color 11.Lifting hook 12.Carpet probe 13.Sider shifter 14.Jib
