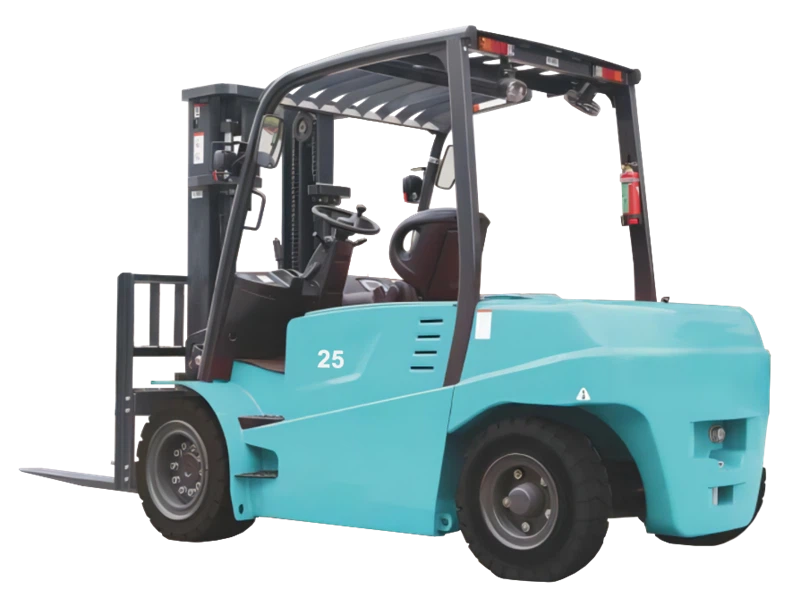

The new 2.5-ton CE certified electric forklift adopts a four-point balance structure, equipped with an AC power motor and a lithium-ion energy system, meeting the EU CE's extensive and stringent requirements for mechanical safety, electromagnetic compatibility, and environmental emissions.
This mannequin is equipped with an American Curtis savvy controller to achieve unique walking and lifting control. The maximum tour speed is 12-13km/h3 when fully loaded, and the famous lifting peak is 3 meters, which can be extended to 7 meters through customization. Equipped with triple protection: LED panoramic lighting fixtures ensure protection operation in low-light environments, emergency power-off system prevents circuit abnormalities, and overload safety module automatically limits overload operation. At present, this mannequin has been handed over to ISO9001 excellent management gadget certification, and the market penetration fee for replacing diesel forklifts in vehicle manufacturing, grocery logistics, etc. exceeds 60%.
Parameters Table
|
Model |
|
|
FB25 |
|
Power Type |
|
|
Electric |
|
Rated Capacity |
|
kg |
2500 |
|
Load Center |
|
mm |
500 |
|
Service Weight |
|
kg |
4000 |
|
Tyre Type(Front/Rear)Solid tyre/Pneumatic |
|
|
Pneumatic |
|
Wheel number X Drive wheel(Front/Rear) |
|
|
2X/2 |
|
Tyre Size (Front) |
|
|
23x9-10-16PR |
|
Tyre Size (Rear) |
|
|
18x7-8-14PR |
|
Front Tread |
W1 |
mm |
1018 |
|
Rear Tread |
W2 |
mm |
950 |
|
Wheelbase |
L4 |
mm |
1500 |
|
Fork Size (LxWxT) |
L1 |
mm |
1070x120x40 |
|
Mast Tlit Angle(F/R) |
|
deg |
6/12 |
|
Lift Height |
H |
mm |
3000 |
|
Mast Lowered Height |
H1 |
mm |
2055 |
|
Free Lift Height |
H5 |
mm |
120 |
|
Mast Extended Height |
H2 |
mm |
4075 |
|
Backrest Height |
H6 |
mm |
1045 |
|
Fork Adjust Distance |
W3 |
mm |
240-1040 |
|
Length to Face of Fork |
L |
mm |
2310 |
|
Overall Width |
W |
mm |
1240 |
|
Overhead Guard Height |
H3 |
mm |
2200 |
|
Distance From Roof to Seat |
H7 |
mm |
1050 |
|
Front Overhang |
L2 |
mm |
450 |
|
Rear Overhang |
L3 |
mm |
365 |
|
Turining Radius(outside) |
r |
mm |
2080 |
|
Ground Clearance (Bottom of mast) |
H4 |
mm |
110 |
|
Min.intersecting aisle |
Ra |
mm |
2200 |
|
Min.right angle stacking aisle width |
RASA |
mm |
3700 |
|
Max.Travel Speed (Full load/No load) |
|
km/h |
15/17 |
|
Lifting Speed (Full load/No load) |
|
mm/s |
320/360 |
|
Lifting Speed (Full load/No load) |
|
mm/s |
430/540 |
|
Lowering Speed (Full load/No load) |
|
mm/s |
≤600/≥300 |
|
Max.Gradeability (Full load) |
|
% |
15 |
|
Battery(Voltage/Capacity) |
|
V/Ah |
80/280 |
|
Battery Size (LxWxT) |
|
mm |
870x630x510 |
|
Drive Motor |
|
KW |
12 |
|
Lift Motor |
|
KW |
15 |
|
Lift Motor |
|
KW |
26 |
|
Controller Manufacturer |
|
|
CURTIS |
|
Type |
|
|
AC |
|
Operating Pressurs |
|
Mpa |
18 |

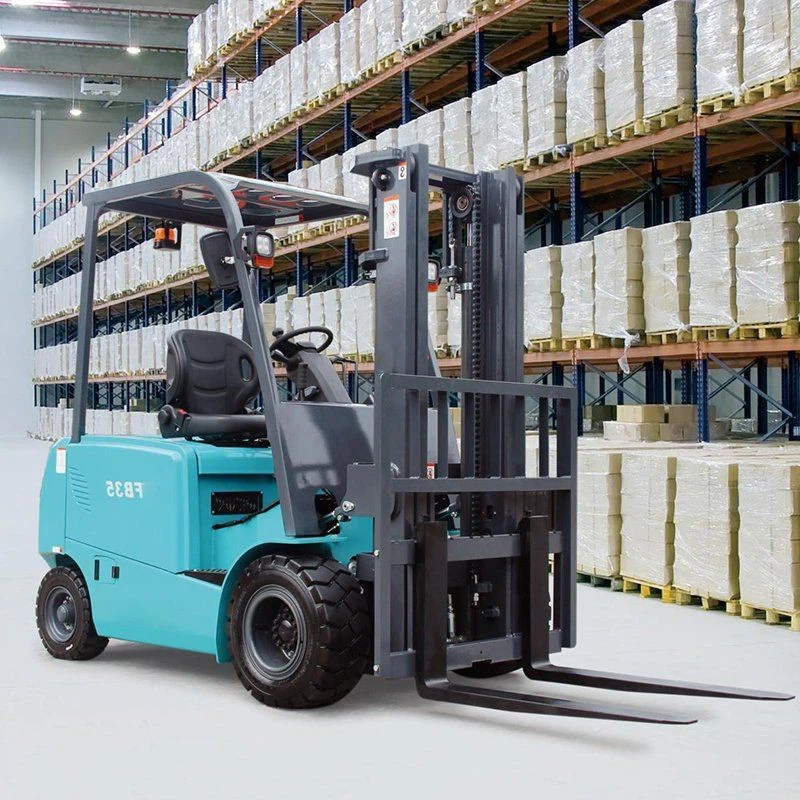

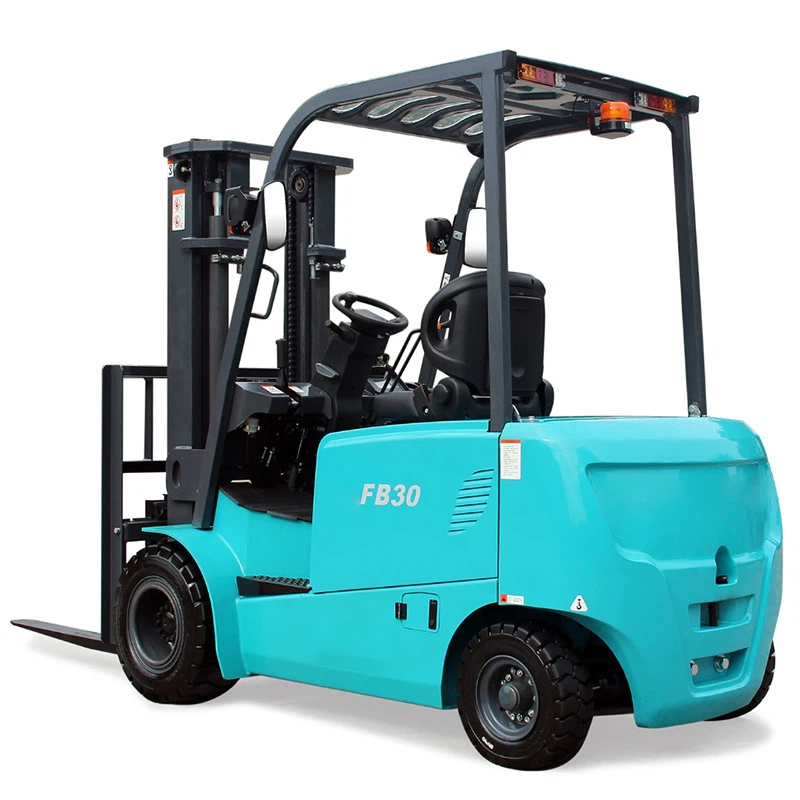

Product Display
ABOUT US
The new design widens mast to give the driver a wider view
Wide leg room for comfortable driving posture.
Large capacity lead-acid battery to ensure long endurance operation
High quality pure hydraulic components, provide strong power.
OUR SERVICE
Market/Market Scope
Certificate/Our Honor
Our Certificate
Logistics
FAQ
Q: What is your delivery time?
A: The delivery time is around 30 working days. In peak season, the production time would take longer.
Q: What is the payment term?
A: Normally we accept, TT, LC at sight.
Q: What about your quality Control?
A: We have a strict quality control system, Professional QC team.
Q: What color can I choose?
A: Normally, we use Yellow, Red, Green . But We also can customize the color according to your color Code.
Q: Can I see the production progress after order?
A: Yes, during production, we can have video call and we could take photos/videos for your reference.
Q:What certification do you have?
A:Our company has passed ISO 9001:2008 and all of the forklift have CE certification.
Q: What kind of service can I get from you if I buy? How can I get parts?
A: We have 1 year warranty for each machine.Within 1 year warranty, if any parts failure caused by quality issues, the new parts would be sent to you free of charge within 7 working days. We have professional after sales department to support for you at any time.
