3 Ton Electric Forklift For Sale

Model:FB30Q
Name:3 Ton Counterbalance Electric forklift
Load capacity:3000KG
Lift Height:3000mm
Load center:500mm

Send Inquiry

Description

The three-ton electric forklift for sale is designed for medium-duty work prerequisites and is suitable for internal loading and unloading and stacking operations in ports, factories, stations, etc. It has a rated load of 3000KG, a load core distance of 500MM, and a maximum lifting peak of 4000MM, which can meet the needs of special stacking scenarios. It adopts imported core science and is equipped with a 72V/500AH large-capacity battery pack or a high-voltage lithium battery system. It has strong durability, which helps to work in the rain, fixing the environmental boundaries of ordinary battery forklifts. It has a compact body, a small wheelbase, a flexible turning radius, and is equipped with a fully enclosed waterproof and dustproof motor and a smart longitudinal system. Its video display shows the work prevalence in real time, and the fault self-detection feature ensures protected and environmentally friendly operation. Optional lateral movement devices, double-layer stacking features, and a series of additional components can meet unique environmental needs such as bloodless storage and explosion-proof.

Our Advantages

Capacity 1.5ton-3.5ton

Ergonomics Design.

External full steel cover.

International Quality Components.

Long time durability ensure shifts works/heavy duty working.

High quality components, INMOTION controller, AC driving motor, AC lifting motor

Fault code through the digital display.

Strong safety guard, ensure safety operations.

Wide view mast, two stage & three stage are available. Side view also good. Ensure safety operations.

Big operation space ensure comfortably.

Reliable structure humanity design to reduce the truck maintenance.

Parameter Table

Model		FB30Q
Drive mode		Electric
Type of operation		Seated
Load capacity/rated load	kg	3000
Load centre distance	mm	500
Load distance,centre of drive axle to fork	mm	468
Wheel base	mm	1650
Service weight incl. battery(see line 43)	kg	4850
Axle loading ,laden nt/rear	kg	7050/800
Axle loading,unladen front/rear	kg	2220/2630
Tires Type		pneumatic
Tires size,front		23x9-10-18PR
Tires size,rear		18x7-8-14PR
Wheels,number front/rear(×=driven wheels)		2/2
Track width,front	mm	1040
Track width,rear	mm	960
Mast/fork carriage tilt forward/backward	deg	6/10
lowered mast height	mm	2045
Free lift	mm	140
Lift height	mm	3000
Extended mast height	mm	3977
Overhead load guardheight	mm	2205
Seat height/standing height	mm	1100
Coupling height	mm	295
Overall length	mm	3605
Length to face of forks	mm	2535
Overall width	mm	1260
Fork dimensions	mm	45x125x1070
Fork carriage width	mm	1100
Ground clearance ,laden,under mast	mm	110
Ground clearance,centre of wheelbase	mm	120
Aisle width for pallets 1000×1200 crossways	mm	3985
Aisle width for pallets 800×1200 lengthways	mm	4115
Turning radius	mm	2230
Travel speed,laden/unladen	km/h	13/14
Lift speed,laden/unladen	m/s	0.31/0.40
lowering speed,laden/unladen	m/s	<0.6
Service brake		Hydraulic
Drive motor rating	kw	15
Lift motor rating	kw	10
Battery standard		DIN
Battery voltage,nominal capacity	V/Ah	80/500/560
Battery weight	kg	1350
Battery dimensions I/w/h	mm	1016x688x760
Type of drive control		AC
Operating pressure for attachments	Mpa	17.5
Oil volume for attachments	l/min	36
Sound level at driver's ear according to EN 12 053	dB(A)	74

Nuo Shington

Product display

Model:
FB30Q
Load capacity:
3000kg
Lift Height:
3000-6000mm
Fork Length:
1070-2000mm
Load center:
500mm

Nuo Shington

Product advantages

Ergonomic design, convenient right hand control lever and convenient steering wheel with knobs.

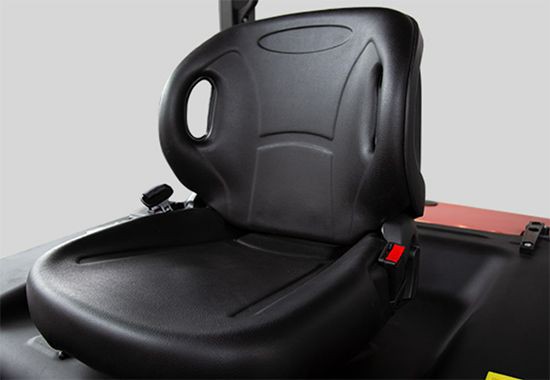

Suspension seat, OPS seats ensure comfort and safety.
The vehicle front and rear equipped with LED lighting system, higher brightness, longer life
Optional maintenance-free lead-acid battery and safe and reliable lithium battery

Nuo Shington

physical display

Standard Equipment >>>

1. Hour meter 2.Oil pressure alarm 3.Hydraulic filter 4.Lamp guard 5.Charge director 6.Back-up buzzer 7.Hydraulic steering 8.Standard fork 9.Drawbar pin 10.Horn 11.Back-up alarm 12.Rear working light 13.2-stage mast 14.Awning 15.Standard seat

Option >>>

1. Cabin 2. High exhaust 3.Suspend seat 4. Fork extension 5.Solid tire 6.Windshild 7. Heater 8. Wider fork carriage 9.Anti-fire muffer 10.Customer color 11.Lifting hook 12.Carpet probe 13.Sider shifter 14.Jib
