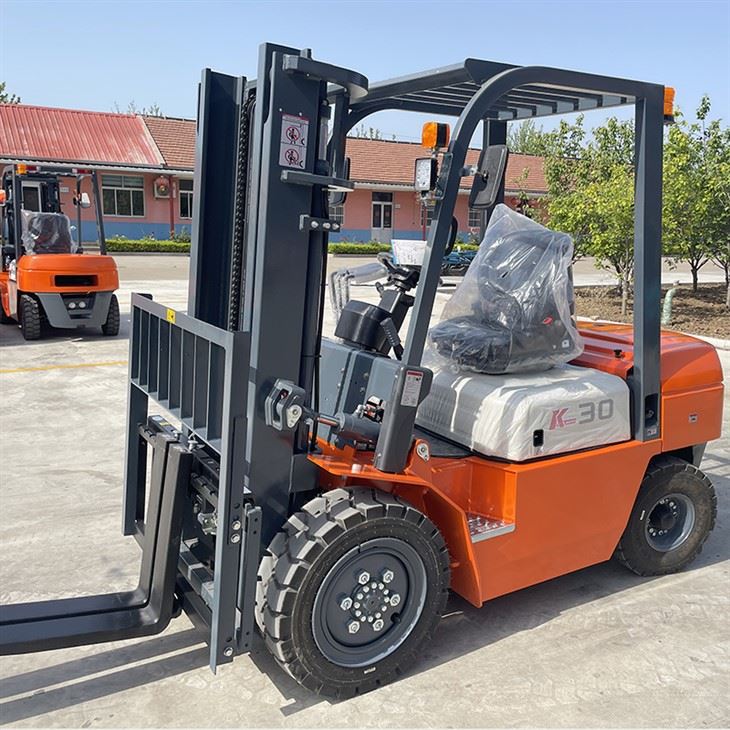

Products Description
Equipped with high-quality engines, emissions in line with current European and American standards.
The use of self-made soft connection gearbox, key components using imported parts, and a low failure rate.
Casting steering bridge, good performance, high reliability, long life.
Standard power brake, comfortable operation, reliable braking;
Equipped with LED energy-saving lamps, high brightness, low energy consumption, long life;
IP56 protection grade modular electrical system, safe and reliable, easy to maintain.
Equipped with automatic engine monitoring system, driver induction system, parking brake safety protection device, improve the vehicle's operational risk prevention and control ability and improves the safety performance of the vehicle.
V-shaped engine support, effectively isolating engine vibration, smooth transmission, low vibration.
Equipped with large handle, control handle right, reversing, lighting handle car layout, small diameter steering wheel, floating safety seat, easy to operate, and a comfortable experience;
A load-sensing hydraulic system is configured to improve operation efficiency and reduce vehicle fuel consumption.
Instrument table style and vehicle unity, beautiful appearance, strong affinity;














| FD30 | ||||
| Product parameter | ||||
| Model | FD30 | FD35 | FD38 | |
| Rated lifting load | kg | 3000 | 3500 | 3800 |
| Load center distance | mm | 500 | ||
| Free lifting height | mm | 160 | ||
| overall length (with fork/without fork) | mm | 3752/2682 | 3763/2693 | 3963/2893 |
| Width | mm | 1225 | ||
| Overhead guard height | mm | 2090 | ||
| Wheelbase | mm | 1700 | ||
| Minimum ground clearance | mm | 135 | ||
| Mast tilt angle (front/rear) | % | 6°/12° | ||
| Tire no. (before) | 28x9-15-14PR | |||
| Tire no. (after) | 6.5-10-10PR | |||
| Minimum turning radius (outer side) | mm | 2400 | 2420 | 2710 |
| Minimum right angle aisle width | mm | 4260 | 4260 | 4720 |
| Fork size | mm | 1070X125X45 | 1070X125X50 | 1070x150x50 |
| Forklift weight | kg | 4250 | 4500 | 4800 |
| Engine model | XINCHAI, ISUZU, MITSUBISHI | |||
