PRODUCT DETAILS PARAMETERS:
NUOXTON 2-10 ton T type forklift are a reliable, versatile and easy-to-use solution.
We are well-known for reliable robust design, excellent competitive value - making even the heaviest of jobs look easy.
NUOXTON annual sales volume of 2-10 ton forklifts remains 7 years above 1,500 units,quality has been proven by the market.
LPG (liquefied petroleum gas) and gasoline dual fuel system. LPG is a clean fuel. Compared with gasoline, it produces less pollutants after combustion, which helps improve the air quality of the working environment. At the same time, gasoline as a backup fuel option increases the applicability of forklifts in different scenarios
1.Engine performance
The engine usually has enough power to carry a load of 3.5 tons for various operations. The engine's power output is stable, which can ensure the smoothness of the forklift when starting, accelerating, lifting goods, etc.
Load capacity and working performance
2.Load capacity
The rated load is 3.5 tons, which means it can safely and stably carry goods within this weight range. The structural design of the forklift, including the frame, forks and other components, is strengthened and optimized according to this load capacity.
3.Lifting height
Depending on different designs and uses, its maximum lifting height can reach several meters (such as the common 3-6 meters) to meet the cargo loading and unloading needs of shelves of different heights.
4.Turning radius
A well-designed turning radius allows the forklift to turn flexibly in narrow warehouse aisles, improves the utilization of warehouse space, and reduces time wasted during cargo handling.
|
Model |
LPG/DIESLE/GASOLINE |
FG35 |
|
Load capacity |
kg |
3500 |
|
Operation |
|
SEAT |
|
Load centre |
mm |
500 |
|
Total weight |
kg |
4620 |
|
Tires |
|
Pneumatic/Solid tire |
|
Front tires size |
|
28X9-15-12PR |
|
Rear tires sieze |
|
6.50-10-10PR |
|
Wheel number(front/rear) |
|
2/2 |
|
Mast tilt (front/rear) |
deg |
6/12 |
|
Length to fork face |
mm |
2820 |
|
Overall width(single tire) |
mm |
1225 |
|
Height of backrest |
mm |
1220 |
|
Lifting height |
mm |
3000-6000 |
|
Height of overhead guard(cabin) |
mm |
2150 |
|
Ground clearance with load mast |
mm |
135 |
|
Min Right Angle Steering Asile Width with palet 1000*1200 across forks |
mm |
2200 |
|
Min.Right Angle Stacking Asle Width with pallet 1000*1200 across forks |
mm |
4150 |
|
Min.turning radius |
mm |
2470 |
|
Travel speed, with/without load |
km/h |
0-20 |
|
Lifting speed, with/without load |
mm/s |
450/470 |
|
Lowering speed, with/without load |
mm/s |
490/430 |
|
Climbing ability |
% |
18 |
Exhaust and cooling system
EQUIPMAX uses a large-capacity radiator and optimized heat dissipation channels. The combination of engine coolant and transmission oil radiator is designed for maximum airflow through the counterweight.
The exhaust comes from the end face of the muffler and uses an external fire extinguisher. The exhaust resistance is greatly reduced, and the smoke exhaust and fire extinguishing functions are more reliable. A particulate soot filter and catalytic converter unit are optional features to improve exhaust performance.
Economical 2ton 2.5ton 3ton 3.5tonLPG/gasoline forklift diesel /Electric forklift truck side shifter with CE
The steering axle adopts a shock absorbing device and is equipped with an upper and lower steering tie rod. It has a simple structure and good strength. It adopts spherical bearings at both ends and strengthens the mounting holes.

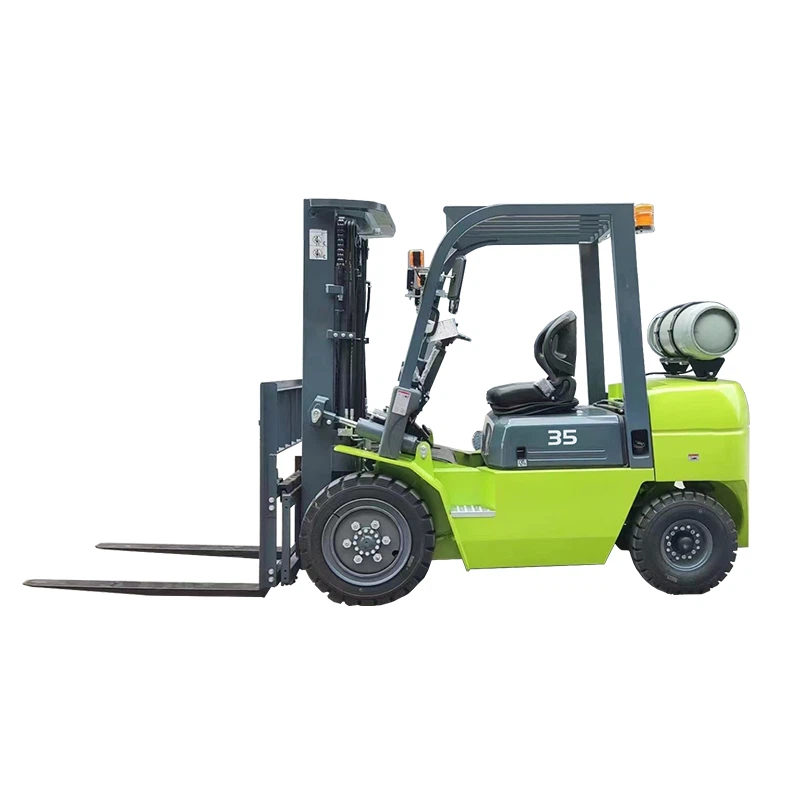

Model:FG35
Power Type:Gasoline/LPG
Lifting height:3000/3500/4000/4500/4700/4800/5000mm
Engine option:Guang qing/Nissan/Mitsubishi
Tires option: solid or pneumatic
Seat option: Hover seat or OPS seat
The vehicle adopts upper intake air to prevent dust from entering
Widening Mast gives a wider view
The whole car comes standard with LED working headlights
Low center of gravity, more stable driving, good passing performance
Machinery is a professional manufacturer that integrates design, development, manufacturing, and sales. The engineering machinery products covered by the company mainly include three categories: heavy-duty forklifts, telescopic forklifts, wheeled excavators, and various customized products. The company has years of experience in manufacturing of engineering machinery and equipment, and has independent research and design capabilities. Its products are widely used in production factories, ports and docks, logistics, stone processing, airports, stations, warehouses, distribution centers, municipal maintenance projects,etc.
Warranty period:
1,The free quality warranty period of the equipment is 12 months, and the quality warranty period starts from the second day after the signing of the Equipment Acceptance Form.
2,During the quality warranty period, our company provides 7*24 hours technical service, when the equipment can not operate normally or failures, our company is responsible for free warranty; During the quality warranty period, all material losses and personnel costs incurred for warranty services within the warranty shall be borne by our company.
3,After the expiration of the quality warranty period, our company continues to provide maintenance services for faults that occur during the operation of the equipment. We will only charge the normal cost of repairs required.
