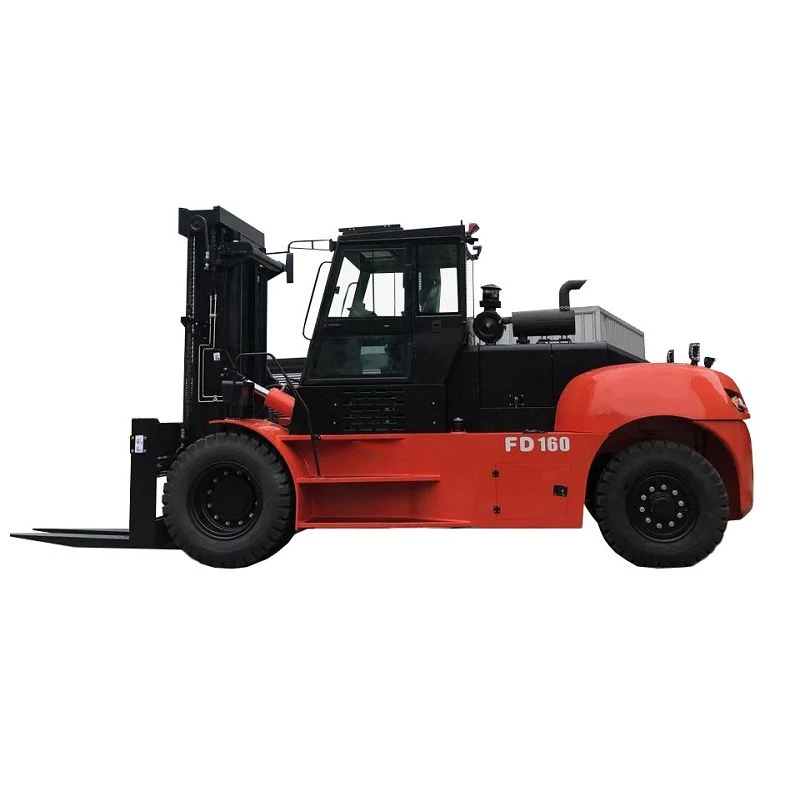

- Model:
FD160
- Load capacity:
16000kg
- Lift Height:
3000-5000mm
- Fork Length:
1800mm
- Load center:
900mm
- Engine:
YUCHAI/ WEICHAI/ COMMINS
Engine: A famous Chinese brand, low fuel consumption, high-quality turbocharged engine, good power performance, large torque reserve, strong power, energy saving, and environmental protection.
Steering system: Equipped with a transverse cylinder-type steering axle and full hydraulic steering, which is flexible, lightweight, and reliable.
Gearbox and torque converter: imported technology, reliable performance, easy maintenance, smooth transmission, and easy operation.
1. Equipped with a powerful and reliable domestic engine with excellent environmental performance; optionally equipped with an original imported Cummins engine.
2. Use advanced load sensing technology to provide flow for the steering system, save energy, protect the environment, and reduce system heat.
3. High-strength welding bath mast. The wide forward view ensures safe operation and improves work efficiency.
High-performance large-tonnage diesel forklift, 16-ton high-efficiency forklift truck, heavy forklift engine forklift.
High-Performance Large-Tonnage Diesel Forklift: 16-Ton High-Efficiency Forklift
Nuo Shington
Product display
Nuo Shington
Product advantages
Cummins, Yuchai, and Weichai turbocharged diesel engines are strong in power, energy saving, and environmental protection to meet the requirements of efficient operation.
The hydraulic system adopts a dual-pump oil supply system to improve the lifting speed of the forklift and improve work efficiency.
The engine is equipped with a two-stage filter design, a cyclone prefilter, and a dry air filter to save energy and for environmental protection.
The lifting height of the mast can reach more than 3 meters; high type, low type, standard frame, and a variety of accessories can be selected according to customer requirements.
Nuo Shington

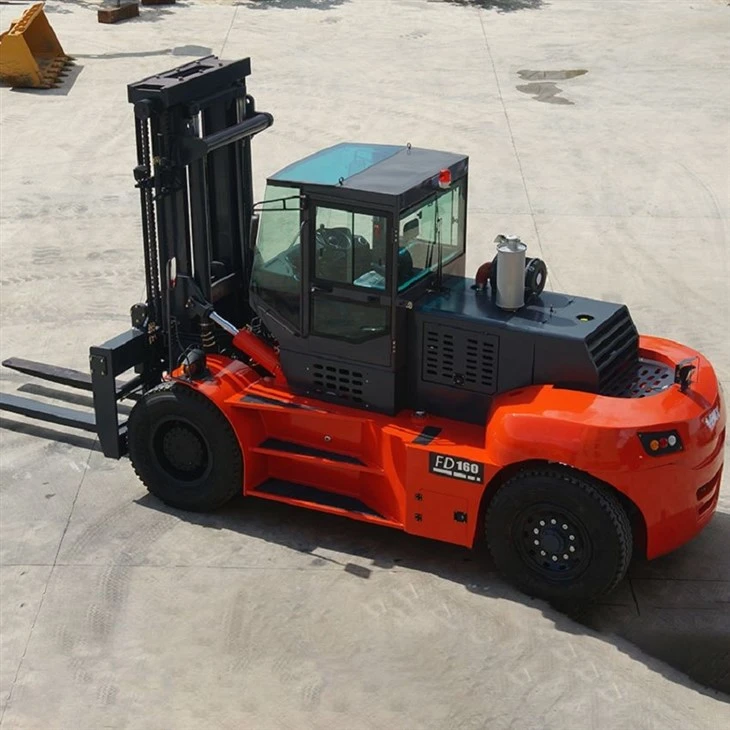

physical display
Standard Equipment >>>
1. Hour meter 2. Oil pressure alarm 3. Hydraulic filter 4. Lamp guard 5. Charge director 6. Back-up buzzer 7. Hydraulic steering 8. Standard fork 9. Drawbar pin 10.Horn 11. Back-up alarm 12. Rear working light 13.2-stage mast 14. Awning 15. Standard seat
Option >>>
1. Cabin 2. High exhaust 3. Suspend seat 4. Fork extension 5. Solid tire 6. Windshield 7. Heater 8. Wider fork carriage 9. Anti-fire muffler 10. Customer color 11. Lifting hook 12. Carpet probe 13. Side shifter 14. Jib
| Project Content | unit |
CPCD160 (light-duty) |
CPCD160 (heavy-duty) |
|
Rated Load |
Kg |
16000 |
16000 |
|
Load Center |
mm |
600 |
900 |
|
Wheelbase |
mm |
3250 |
3800 |
|
Weight |
kg |
18000 |
27000 |
|
Tire Specs: Front |
|
12.00-20 |
12.00-24 |
|
Tire Specs: Rear |
|
11.00-20 |
12.00-20 |
|
Tires Qty., front/rear (X-drive wheels) |
|
4/2 |
4/2 |
|
Wheel tread: front |
mm |
1660 |
2070 |
|
Wheel tread: Rear |
mm |
1760 |
2130 |
|
Mast/carriage tilt angle (front/rear) |
Degree (°). |
6/12 |
6/12 |
|
Mast height (fork lowering) |
mm |
2970 |
3520 |
|
Mast lifting height |
mm |
3000 |
3500 |
|
Max. height |
mm |
4440 |
5220 |
|
height to headguard (height to cab) |
mm |
2780 |
3210 |
|
Overall height (with forks) |
mm |
6800 |
7480 |
|
Fork front vertical surface to the rear end of the vehicle |
mm |
5000 |
5680 |
|
Overall width |
mm |
2300 |
2750 |
|
Fork dimension |
mm |
1800 * 180 * 90 |
1800*200*100 |
|
Fork carriage width |
mm |
2260 |
2700 |
|
Mast min ground (with load) |
mm |
360 |
300 |
|
Wheelbase center min. ground (with load) |
mm |
400 |
350 |
|
Min. Turning Radius |
mm |
4880 |
5340 |
|
Travel speed (with load/without load) |
km/h |
22/28 |
22/30 |
|
Max. lifting speed (with load/without load) |
mm/s |
220/280 |
240/300 |
|
traction |
KN |
110 |
130 |
|
gradeability (with load/without load) |
% |
20/22 |
20/22 |
|
Engine brand/model |
|
YUCHAI/WEICHAI |
YUCHAI/WEICHA |
|
|
Cylinder No |
6 |
6 |
|
Transmission gears (front/rear) |
|
2/2 |
2/1 |
