- Model:
FD120
- Load capacity:
12000kg
- Lift Height:
3000-5000mm
- Fork Length:
1600mm
- Load center:
600mm
- Engine:
YUCHAI/ WEICHAI/ COMMINS
The 12-ton heavy-duty forklift is an excellent choice for industrial and construction areas where heavy loads need to be moved frequently. The machine's ability to handle large weights smoothly and efficiently makes it an indispensable tool for businesses looking to increase productivity and reduce downtime.
12-ton forklift has zero emissions, no pollution and low noise
Low noise: The noise generated by the motor is much lower than the high-power diesel engine of engineering machinery.
Low vibration: The vibration generated by the electric motor is much lower than that of the diesel engine, significantly improving the driving experience.
Easy to operate: intelligent, fully electronic control system reduces labor intensity.
High Performance Large Tonnage Diesel Forklift 12 Tons High Efficiency Forklift Truck Heavy Forklift Engine Forklift.
High Performance Large Tonnage Diesel Forklift 12 Tons High Efficiency Forklift truck
Nuo Shington

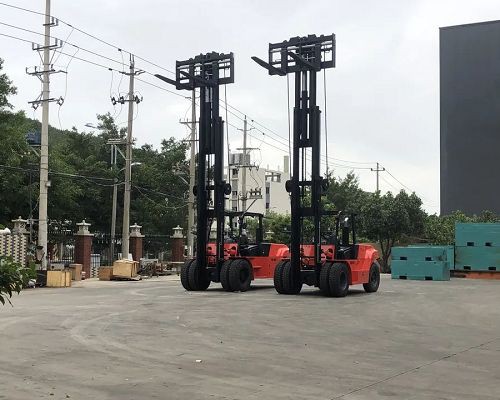

Product display
Nuo Shington
Product advantages
Cummins, Yuchai, Weichai turbocharged diesel engine, strong power, energy saving and environmental protection, to meet the requirements of efficient operation.
hydraulic system adopts a dual-pump oil supply system to improve the lifting speed of the forklift and improve work efficiency.
The engine is equipped with two-stage filter design cyclone prefilter and dry air filter to save energy and environmental protection.
The lifting height of the mast can reach more than 3 meters, high type, low type, standard frame, a variety of accessories can be selected according to customer requirements.
Nuo Shington
physical display
Certificate/Our honor
In terms of quality assurance, we strictly follow CE/ISO/other patent standards. Adopt a full set of industry-leading testing equipment to ensure product quality and good reputation.
logistics/payment service
| Project Content | unit |
FD120 |
|
Rated Load |
Kg |
12000 |
|
Load Center |
mm |
600 |
|
Wheelbase |
mm |
2950 |
|
Weight |
kg |
15500 |
|
Tire Specs:Front |
|
11.00-20-18PR |
|
Tire Specs:Rear |
|
10.00-20-18PR |
|
Tires Qty,front/rear(X-dreve wheels) |
|
4/2 |
|
Wheel tread:Front |
mm |
1660 |
|
Wheel tread:Rear |
mm |
1740 |
|
Mast/carriage tilt angle(front/rear) |
Degree(°) |
6/12 |
|
Mast height(fork lowering) |
mm |
2950 |
|
Mast lifting height |
mm |
3000 |
|
Max.height |
mm |
4420 |
|
Height to head guard(height to cab) |
mm |
2730 |
|
Overall height(with forks) |
mm |
6160 |
|
Fork front verticaal sueface to the rear end of the vehicle |
mm |
4560 |
|
Overall width |
mm |
2250 |
|
Fork dimension |
mm |
1600*180*80 |
|
Fork carriage width |
mm |
2220 |
|
Mast min ground(with load) |
mm |
340 |
|
Wheelbase center min ground(with load) |
mm |
350 |
|
Min.turning Radius |
mm |
4680 |
|
Travel speed(with load/without load) |
km/h |
23/28 |
|
Max.lifting speed(with load/without load) |
mm/s |
220/280 |
|
tractionn |
KN |
100 |
|
gradeability(with load/without load) |
% |
20/22 |
|
ngine brand/model |
|
YUCHAI/WEICHAI/CONMMINS |
|
|
Cylinder No |
6 |
|
Transmission gears(Front/rear) |
|
2/2 |
