- Model:
FD70K
- Load capacity:
7000KG
- Lift Height:
3000-6000mm
- Fork Length:
1220-2400mm
- Load center:
600mm
- Engine:
ISUZU MITSUBISHI QUANCHAI COMMINSNuo Shington
Electric Articulated Forklift
The load capacity series articulated forklift can be 2 tons, and the max lifting height can be 12.5 m. Adopting a front single-drive mechanical differential bridge design, a maintenance-free full AC motor, and a large-speed-ratio gearbox, which provides a greater climbing ability. It's mainly to meet customers' demand for efficiency priority, medium and heavy-duty working conditions, high lifting speed, high driving speed, large capacity battery, excellent ergonomics, easy operation, safety, and excellent performance.
can offer you electric pallet truck, pallet stacker, counterbalance stacker, reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counterbalance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker,
multi-direction forklifts, special forklifts, AGVs, and other customized types for options, which can provide our customers with logistics handling solutions from 500 kg to 100,000 kg. Due to product serialization and standardization, all products are widely used in medicine, food, chemicals, household electrical appliances, wool and cotton textiles, tobacco, electronics, machinery, furniture, and many other industries.
Parameter Table
|
Model |
|
FD60 |
FD70 |
|
Rated lifting load |
kg |
6000 |
7000 |
|
Load center distance |
mm |
600 |
|
|
Free lifting height |
mm |
210 |
|
|
overall length (with fork/without fork) |
mm |
4720/3590 |
4810/3680 |
|
Width |
mm |
1970 |
|
|
Overhead guard height |
mm |
2500 |
|
|
Wheelbase |
mm |
2250 |
|
|
Minimum ground clearance |
mm |
230 |
|
|
Mast tilt angle (front/rear) |
% |
6°/12° |
|
|
Tire no. (before) |
|
8.25-15-14PR |
|
|
Tire no. (after) |
|
8.25-15-14PR |
|
|
Minimum turning radius (outer side) |
mm |
4120 |
4180 |
|
Minimum right angle aisle width |
mm |
5290 |
5360 |
|
Fork size |
mm |
1220x150x60 |
1220x150x65 |
|
maximum working speed (full-load/no-load) |
km/h |
23/29 |
22/29 |
|
maximum lifting speed (full-load/no-load) |
mm/s |
500/530 |
500/480 |
|
maximum gradeability (full-load/no-load) |
% |
15/20 |
|
|
Forklift weight |
kg |
8900 |
9600 |
|
Engine model |
QUANCHAI/ISUZU/MITSUBISHI/COMMINS |
||
Nuo Shington

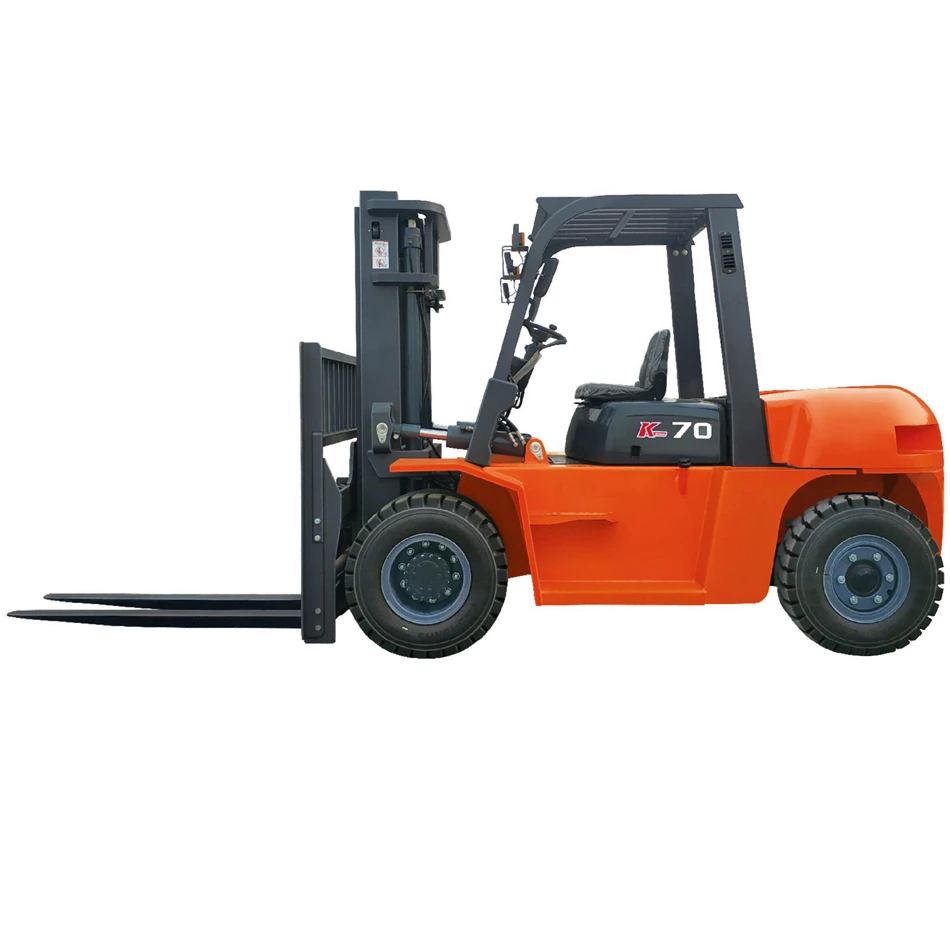

Product display
Product advantages
The machine adopts a large arc streamline shape, and the edge design of the counterweight can be seen from the driver's seat, which can ensure the best visibility when determining the distance in reverse.
The control system designed by ergonomic principle, the direction machine can adjust the Angle, the driver has a wide field of vision, and the comfort is good.
Adopt domestic well-known brand gearbox, strong power, reliable performance- COMPANY
Hangzhou Nuoxunteng Trading Co., Ltd. is an integrated industry and trade company that provides one-stop services, focusing on forklifts, forklift solid tires, forklift pneumatic tires, wheels, rims, and forklift accessories. You can buy everything you need in one go at our company. We are the best choice for domestic and foreign forklift and forklift-accessory dealers.
We have professional engineer support, an efficient sales team, and competitive price advantages, attracting customers from all over the world.
Our product advantages:
1. The trolley-type electric stacker can greatly reduce labor intensity
2. High-quality thermal insulation material: the operator will not be affected by the heat generated by the engine.
3. Solid tires can be used, which have high wear resistance, good elasticity and good driving experience;
4. It adopts an ultra-high-power drive and lifting DC motor with good speed regulation performance and can realize large starting and braking torque functions.
5. Optimize the ergonomic dimensions of the steering wheel, seats, instrument frame, and driving space to improve the driver's operating comfort and ease of use.
